This car speaks for itself.  I built this car over the past few years and have used only quality, brand name parts.  I guarantee you will never see another Saturn like it, and will be hard pressed to see this level of detail in any car you might encounter.

Exterior:

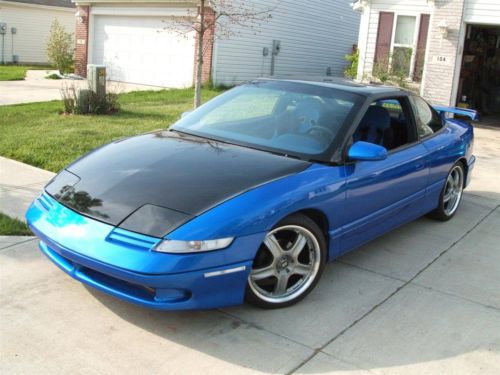

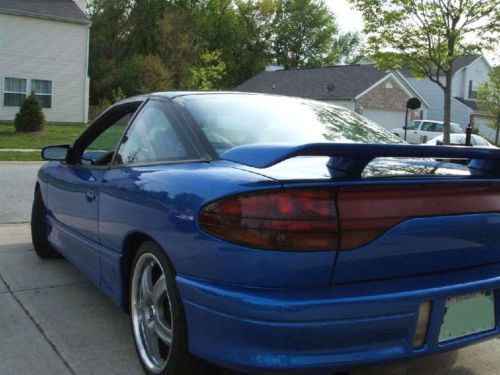

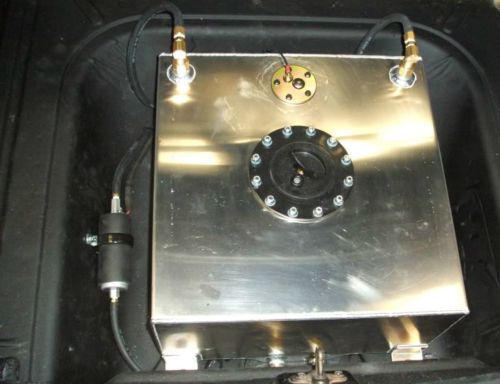

I shaved the gas door and emblems.  There is an RCI aluminum fuel cell in the spare tire well with a Walbro 255 inline fuel pump.  The front bumper is something I fabricated.  Not only will you not see another like it, it does wonders for the look of the car and adds a lot of airflow to the intercooler.  I painted the body using House of Kolor True Blue Pearl, except for the hood, headlight doors, and roof - which are black.  The wheels are Enkei DM5s.  The tires have very little wear.  Two of the wheels have small bends due to potholes, but they do not cause any leaks.  Also, there is a scuff on the passenger rear quarter panel/bumper area where I got too close to the garage when backing it in.  It is not noticeable until you get very close.  There is also a very small knick in the front bumper.  As far as I know, these are the only defects on the car.  I welcome anyone to come see the car in person, even with those small issues it is a magnificent vehicle.

Interior:

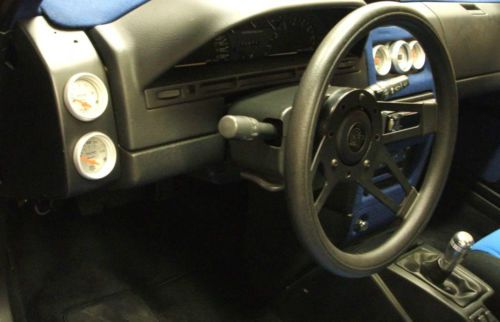

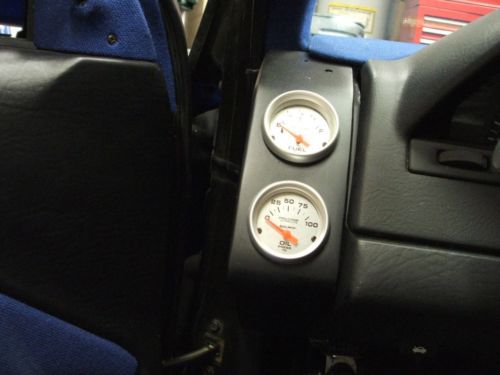

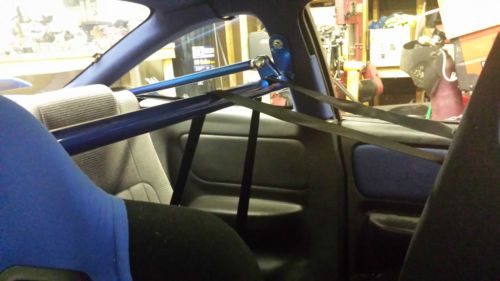

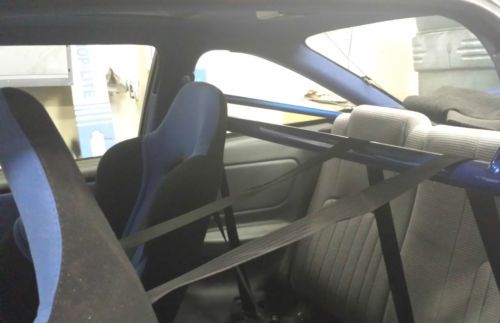

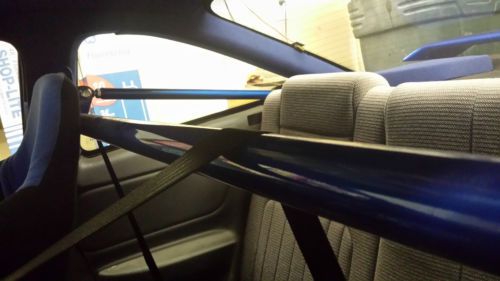

The interior is black vinyl with blue cloth (similar color to body).  There are racing seats with 4-point harnesses, which utilize a custom harness bar. The bar is powder coated a blue that is very similar to the body.  I also have four Autometer gauges: Fuel level, oil pressure, boost, EGT, and an AEM wideband AFR; all custom mounted.  In addition, I replaced the factory carpet with a brand new black carpet.  There is also a true short-throw shifter with an aluminum knob.  The shifter has reworked arms, not just “chopped” to make it shorter.  There is also an aftermarket AM/FM/CD player.

Engine:

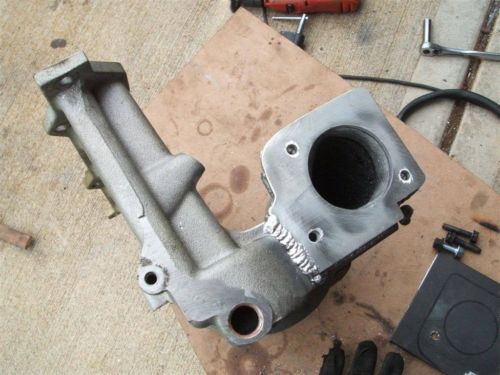

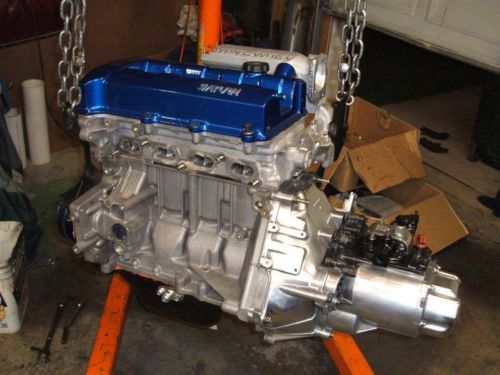

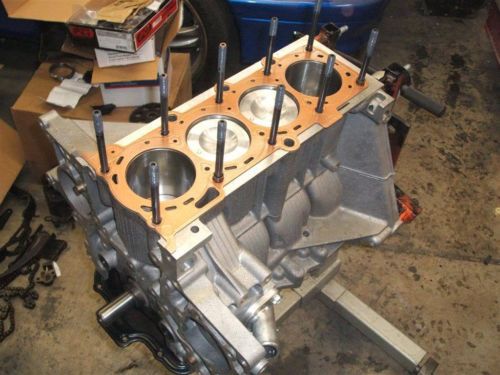

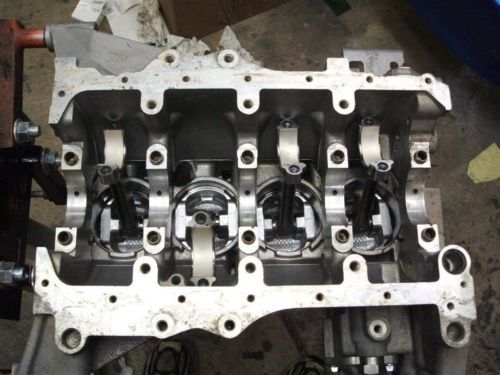

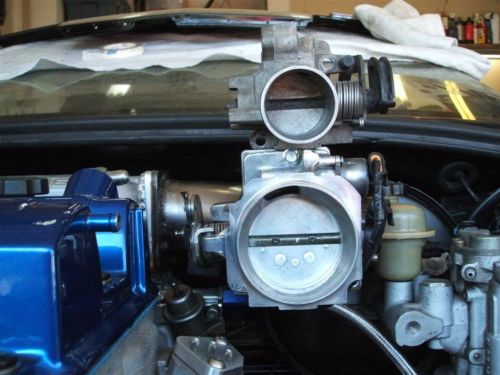

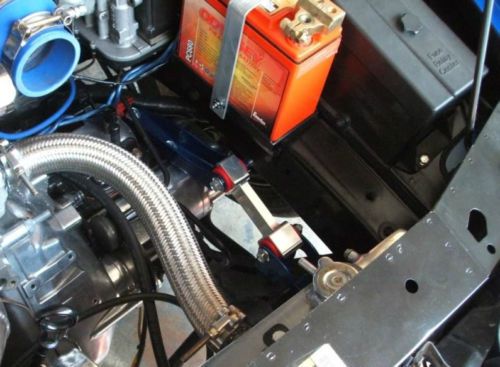

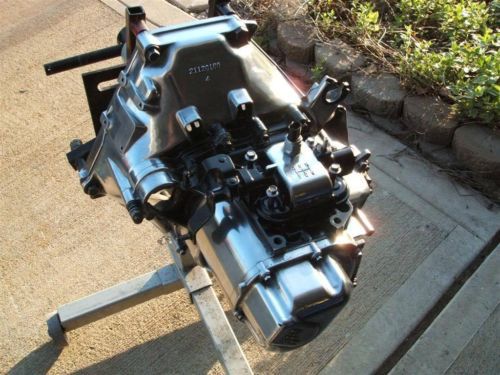

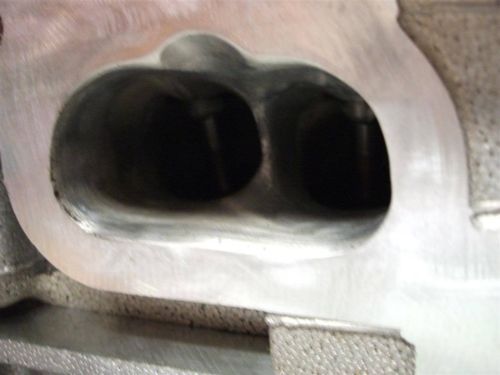

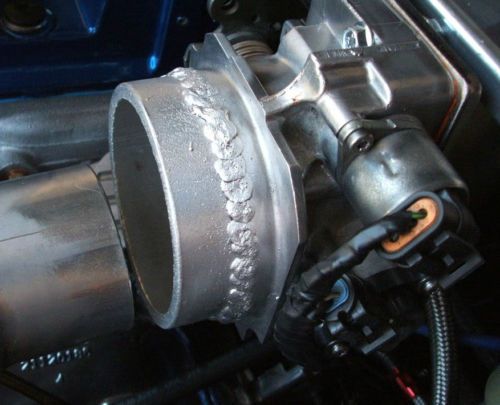

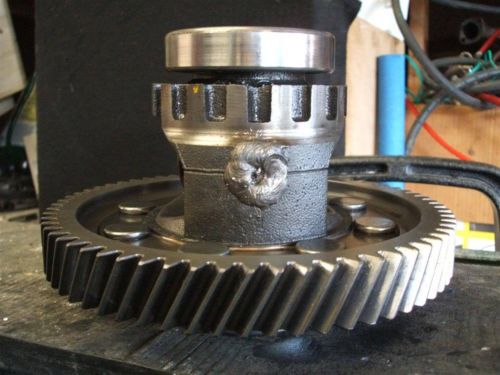

The engine was completely torn down, thoroughly cleaned, then built using all brand new parts.  I used SCAT forged rods and .040” over Sealed Power pistons.  The CR is about 8.8:1.  The oil pump, water pump, timing kit, bearings and seals are all new.  The head is ported and polished and I installed ARP head studs and stainless steel exhaust studs.  The crankshaft was machined and balanced.  The intake manifold has been re-worked and bored to 3” from the throttle body all the way to the plenum.  I welded a new mounting plate to accommodate a 3” GM throttle body.  I used a Fel-Pro silicone valve cover gasket and the valve cover has been powder coated blue to match the paint.  The ignition uses MSD coil packs with Accel 8mm wires.  The fuel rail has been polished and accepts a SS braided line with AN fittings.  The TAM mount is custom made and uses Energy Suspension poly bushings.  The dogbone mounts are also custom made out of T6061 aluminum and also use the Energy poly bushings.  I custom mounted an aluminum half radiator with a 12” SPAL fan to clear the turbo setup.  The battery location was moved and I installed a small race battery.  The transmission has a welded differential pin so you don’t have to worry about it coming out with the added power.  Also, the transmission is fully hand polished.  The pullies and brackets are also powder coated blue.  All new stainless bolts and hardware were used.  I promise you that the level of detail here is very, very rare.  There are 55 miles on the new build.

Turbo Setup:

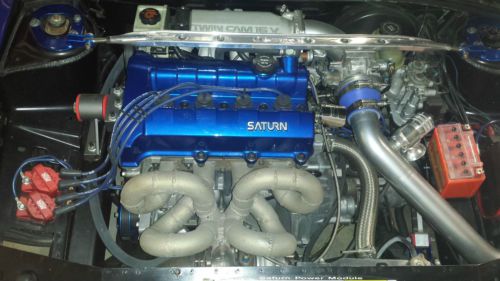

I used a 1/2 ” mild steel flange and fabricated an equal-length turbo manifold using Sch. 40 stainless steel.  The turbo flange and wastegate flange are also 1/2 ” and mild steel.  The turbocharger is a Holset H1C.  Apparently, there are two sizes of H1C turbos; this is the larger one.  I can get numbers off of it if you need me to.  The wastegate is a 38mm Tial.  The downpipe and exhaust system are 3” stainless steel.  I have a  Flowmaster 70 Series muffler, which splits to two, 2.5” outlets for a dual exhaust.  I have video clips of the exhaust if you would like to see how it sounds (amazing sound, lots of turbo whistle).  The intercooler piping is all 2.5” and is powder coated gunmetal.  I have a good size front mount intercooler with 2.5” in/out.  All oil and fuel lines are SS braided with AN fittings.

 I currently do not have a spring in the wastegate as the car is running off of the factory computer, but I do have several springs I will include.  I have installed a MegaSquirt stand-alone fuel system, but have not used or tuned it.  I have installed MOLEX connectors that make changing between the factory computer and MegaSquirt easy.  All the extra sensors needed for the MegaSquirt are also installed.  The car is fully drivable, but I would suggest not driving it until it has been tuned using the MegaSquirt or a different system of your choosing.

I’m sure I have left out something, I have simply done so much to this car that it is hard to remember everything.  The pictures speak for themselves; this really is a remarkable car.  If you have any questions, I will do my best to answer them.  If you would like to see the car in person, please contact me.  If the weather is accommodating, we can take it around my neighborhood.  I will drive and we won’t go far, as I don’t have it plated or insured.

The reserve is MUCH lower than the car is worth, I could easily get $5000 by parting it out and selling the car separately, but I don’t really have time for that, so the reserve is WELL under that.  Again, if you have any questions or need more pictures, feel free to ask.
