Mg Midget Ah Sprite Spridget Ultimate Project on 2040-cars

This is the car from the "Spridget Project" website where over the past couple years the objective was to assemble all the parts and do the necessary mods to build what may be considered the ultimate street legal Spridget. Times and priorities change and the part enjoyed most, the conceptualization and engineering, are complete...all that remains is the assembly and enjoyment of the finished car.

To that end, the Spridget Project is offered for sale with hopes that the dream Spridget will soon hit the street and bring lots of enjoyment to the owner and all the folks he/she encounters.

The component inventory is extensive and presented herein as well as the price paid for each item. The total, including engine, is $24,466. NOTE - the total cost to date does NOT include the countless hours invested in the project nor the cost of specialized equipment procured nor the cost of many small pieces of hardware (nuts, bolts, screws, sheet metal, welding supplies, etc.).

There is less interest at this point with final price realized and more focus on the Spridget Project going to someone that will see it through assembly, a relatively simple process compared to what has gone before, and enjoyment of the finished car.

Additionally, many hundreds of digital photos that document EVERY aspect of the build are available; these will be provided without condition to the new owner. Also, receipts for all parts and services will accompany the sale.

A NOTE CONCERNING THE ENGINE - Most anyone involved with Brit Cars in the US over the last 25 years, whether collectors, racers, or hobbyists, will immediately recognize the name of Hap Waldrop of ACME Speed Shop in Greenville, SC. Hap's love for and success in SCCA Racing over the years led him to embrace it professionally and he has become known as a preeminent engine builder. The arrangement with Hap was simple...build the finest "A" Series engine possible, no limits...other than it be able to run on pump gas. That he did, and with mastery. The detailed list of parts and services are provided herein and a complete build photo essay with descriptions will accompany the sale. This is the finest engine you can put in a streetable Spridget, so read through the list carefully.

-------------------------------------------------------------------------------------------------------

Description Vendor Part Paid

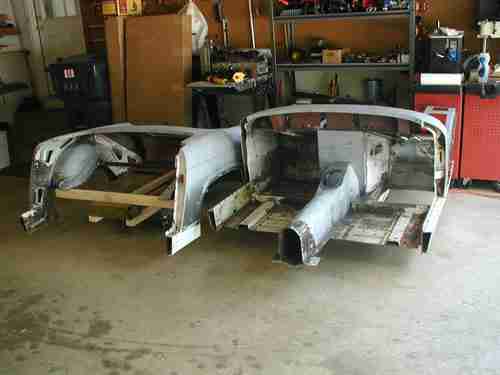

Body

1962 Sprite $1,900

front fender repair panel, R/H Moss 455-260 $31

outer sill, L/H, 1 jack point Moss 455-495 $63

outer sill, R/H, 1 jack point Moss 455-490 $63

inner sill, L/H Moss 455-445 $34

inner sill, R/H Moss 455-440 $34

rear fender repair panel, L/H Moss 455-115 $190

rear fender repair panel, R/H Moss 455-105 $190

end cap, front L/H Moss 452-150 $18

end cap, front R/H Moss 452-155 $18

end cap, rear L/H Moss 452-160 $18

end cap, rear R/H Moss 452-165 $18

inner wheel arch repair panel, L/H Moss 455-095 $71

inner wheel arch repair panel, R/H Moss 455-085 $71

"A" post outer skin, L/H Moss 452-645 $36

"A" post outer skin, R/H Moss 452-655 $36

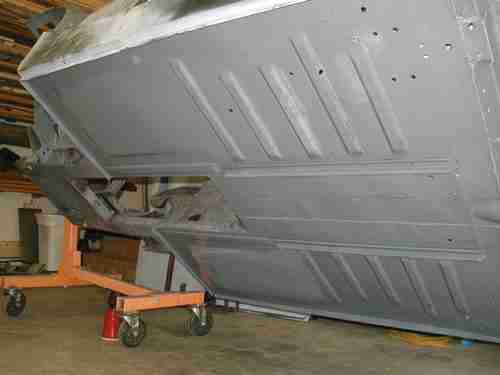

floor pan, L/H Moss 455-635 $155

floor pan, R/H Moss 455-625 $155

outer cross member section Moss 455-005 $85 price is for (2)

trunk floor Moss 452-195 $221

outer side footwell panel, L/H Moss 455-215 $36

outer side footwell panel, R/H Moss 455-210 $36

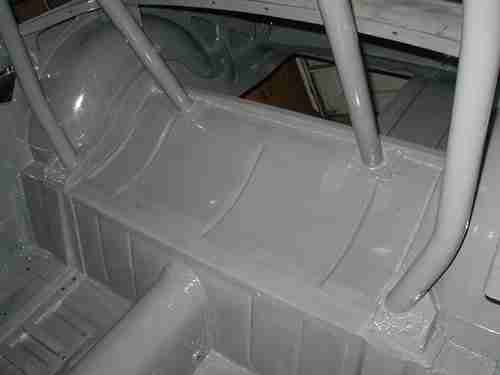

bulkhead, rear cockpit Moss 455-590 $114

shut panel Moss 455-565 $79

reinforcement set, bulkhead floor Moss 455-520 $118 price is for (2)

brace Moss 455-975 $119 price is for (2)

base plate, spring mount Moss 455-580 $108 price is for (2)

bracket, radius arm, R/H Moss 455-540 $57

bracket, radius arm, L/H Moss 455-550 $57

spring hanger box Moss 455-510 $192 price is for (2)

damper mounting bracket, R/H Moss 455-560 $36

damper mounting bracket, L/H Moss 455-566 $35

"A" post assembly, L/H Moss 452-130 $53

"A" post assembly, R/H Moss 452-135 $53

-----

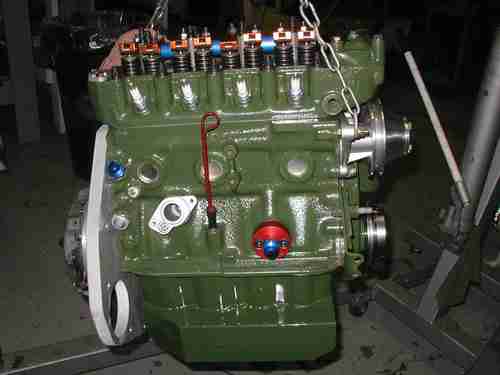

Engine:

1275cc. BMC "A" series - core Mike Miller (Comptune) $500 guarantee on block, head, and crankshaft

roller rockers Winner's Circle WCR 100D $303 kit 1275 - 1.34

rocker shaft Winner's Circle SRS 101 $83 competition hardened "A"

aluminum valve cover Winner's Circle $64

competition oil pan Winner's Circle EOP102 $275 "blue pan"

remote oil filter kit Winner's Circle ROK100 $69 w/6' hose; uses large Ford spin on filter

header Winner's Circle LCB200 $226 long center branch;1 3/4" OD outlet;

black painted finish then ceramic coated

velocity stacks Winner's Circle LVS200 $58

velocity stack socks Winner's Circle STF200 $44

velocity stacks ACME Speed Shop $77 pair; custom turned aluminum

oil cooler Winner's Circle 41310 $135 Earls; 13 row/wide; -10 AN

remote oil filter bracket Winner's Circle ROK 102 $20

remote oil plate Winner's Circle ROK 105 $25

-10 to 1/2 NPT nipple Winner's Circle 981610 $13 (2) @ 6.36 each

-10 to 3/8 NPT nipple Winner's Circle 981611 $7

-10 AN to rear of block fitting Winner's Circle ROK 109 $15

oil filter Winner's Circle 3HP1 $13 Fram HP1

ceramic coating of header Jet Hot Coatings $183 Sterling Coating

ACME Speed Shop;

Alloy flywheel TAF102 $405 Fidanza #126751

Carburetor rebuild $561

Set of 4 AE 2153 pistons .040 $350

Romac A-series harmonic balancer $205

Rollmaster vernier timing gear $174

APT VP276 slot drive nitrited camshaft $269

APT CF-04 chilled iron lifter set $120

APT A+ slot drive oil pump $60

Payen conversion gasket set $45

Payen head gasket set $39

Chrome valve cover hardware kit $20

Nitrited rocker arm shaft $35

ARP head stud kit $140

ARP flywheel bolts kit $24

Q-H water pump $50

King tri-metal rod bearing set Std. $60

King tri-metal main bearing set Std. $56

Intake stud kit $10

water pump bypass hose kit $4

oil press. Regulator spring $2

Moss BMC olive engine paint $1

AE cam bearing set $25

Camshaft thrust plate $21

NGK B6ES spark plugs (4) $10

160 degree thermostat $5

Crankshaft EN16t Std. Std. $165

ARP rod bolt 206-6001 $93

ZDDPlus zinc oil additive $11

Intake valve (4) $52

Exhaust valve stellite (4) $64

Bronze guides (8) $48

Misc. engine building supplies $25 silicones, solvents, paint, etc.

Misc. engine fasteners $35

Caustic wash block (twice) $75

Engine parts cleanup $350 includes degrease, bead blasting, paint

Disassemble core engine $120

Remove oil galley plugs and tap for NPT plugs $50

Bore block .040 $150

magnaflux crankshaft and straight check $39

R&R cam bearings $35

Balance crankshaft $140

Polish crankshaft journal $40

Size connecting rod, install ARP rod bolts, and balance $150

Balance pistons $25

Install 4 hardened exhaust seats $100

Deck cylinder head $50

Three angle valve job $125

Port cylinder head and install guides $700

Assemble engine $750

Assemble HS roller rocker $200 inc. necessary mods.

AE valve spring set $41

---

ENGINE SUBTOTAL $8,355

-----

Transmission/Drive Train

Rivergate 5 speed conversion Rivergate Restoration Products

conversion kit Rivergate 31104-6 $659

overhaul transmission Rivergate $548 includes case/gearshift modifications and shipping

clutch slave cylinder Rivergate 30447 $99

speedometer adapter kit Rivergate 30040 $135 custom cable with 1.1 ratio

gear reduction starter Rivergate 40001 $199

Datsun 5 speed transmission Ebay-Christian Thompson $450

clutch pressure plate Moss 190-850 $110

clutch lever boot Moss 461-010 $6

clutch dust cover Moss 461-870 $8

clutch release lever Moss 190-955 $97

bush Moss 330-435 $3

clutch release fork bolt Moss 330-505 $5

release bearing clip Moss 190-315 $5 price is for (2)

roller release bearing Ebay-NOS Locators $40

differential - 3.7/1 Ebay-Norman Abbott $240

rear axles Ebay-Norman Abbott $25 used, late model; harder steel price per pair

breather Moss 267-040 $4

axle tab washer Moss 265-560 $4 price is for (2)

differential gasket Moss 294-210 $4 price is for (2)

hub gasket Moss 296-030 $2 price is for (2)

hub oil seal Moss 120-030 $12 price is for (2)

hub o-ring Moss 121-410 $4 price is for (2)

U-joint Moss 268-060 $20 Hardy-Spicer

Cooling System

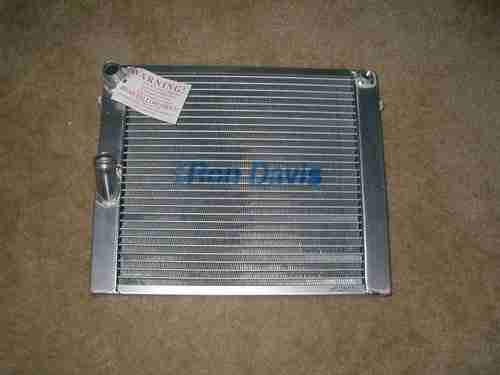

aluminum radiator The Winner's Circle ALR101 $556 Ron Davis model; cross flow

expansion tank Summit Racing MOR-63651 $103 aluminum; 1.5 qt.; billet neck

Suspension and Steering

"A" frame The Winner's Circle AFN800 $458 new; British Heritage brand; price per pair

fulcrum pin The Winner's Circle LFP900 $40 price per pair

competition swivel axles The Winner's Circle CSA800 $320 price per pair

front bearings The Winner's Circle TRB800 $122 tapered roller bearings price per pair

bushings The Winner's Circle SBK801 $64 molybdenum nylon; offset top holes for camber adjustment

competition front springs The Winner's Circle CFS803 $145 400# rated; price per pair

front sway bar The Winner's Circle ARB800 $235 3/4"; nylon bushings

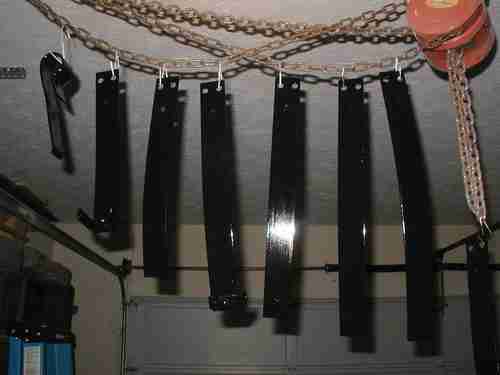

rear springs The Winner's Circle QES600 $208 remove top three leaves; price per pair

bump rubber Moss 282-220 $18 price per pair

spring plate Moss 265-600 $28 price per pair

u-bolt Moss 265-570 $54 price per pair

rebound strap Moss 267-610 $20 price per pair

panhard bar The Winner's Circle OPB600 $177 price per kit

front/rear lever shocks World Wide Auto Parts RM5925 $302 cost is for rebuild; price per both pair

radius arm Moss 265-380 $112 price per pair

shock absorber link Moss 265-420 $60 price is for (2)

upper felt bush Moss 667-600 $6

lower felt bush Moss 263-420 $8

steering column to toe board seal Moss 280-880 $8

pinion oil seal Moss 120-040 $1

pinion top thrust washer Moss 663-320 $2

tie rod end Moss 263-288 $31 price per pair

rack seal Moss 260-320 $37 price per pair

large clamp Moss 263-230 $2 price per pair

small clamp Moss 326-325 $4 price per pair

Brakes

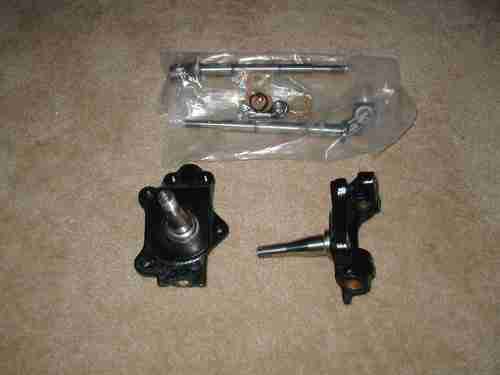

front disk brake conversion Ebay-jdeatsch $250 used - axles, swivel pins (replace), calipers, dust covers

rotors Ebay-allgermanparts $59 Brembo price; includes shipping

king pins Ebay NOS

green pads Moss 585-625 $58

braided stainless hoses Moss 182-248 $80

brake lines Moss 184-028 $104

Speed Bleeders Ebay-SpeedBleeders $33 1/4x28 (pr) & 3/8x24 (pr); price per kit

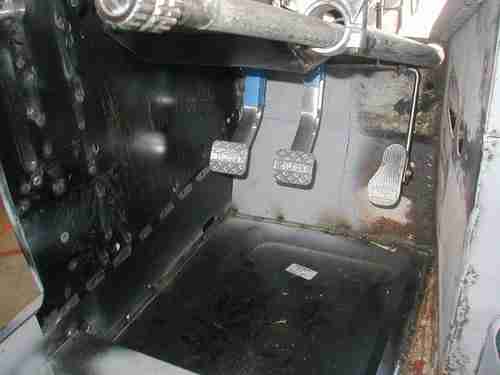

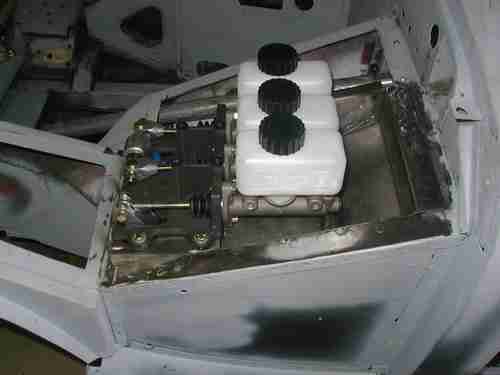

Tilton pedal box The Winner's Circle $258

Tilton 5/8" front brake MC The Winner's Circle $60

Tilton 3/4" rear brake MC The Winner's Circle $60

Tilton 5/8" clutch MC The Winner's Circle $60

plug Moss 181-975 $5 price is for (2)

wheel tab washer Moss 181-915 $5 price is for (4)

brake shoe set Moss 182-175 $17

boot Moss 181-760 $10 price is for (2)

spring, R/H Moss 182-670 $6 cylinder end

spring, L/H Moss 182-675 $6 cylinder end

handbrake cable Moss 331-660 $23

Wheels and tires

Superlite 5.5"X13" aluminum alloy wheels Acme Speed Shop $625 price includes shipping; silver finish (4)

Kumho 758 - 185/70R13 tires (black wall) Ebay-Selecttire $190 (4) tires

Electrical

distributor Ebay-Paradise Parts 123\GB-4-R-V $381 123 Ignition electronic distributor for Midget

fuse block/wiring harness Summit Racing PRF-50002 $363 Painless Performance Products - race car/street legal/12 circuit

switches:

ignition Summit Racing PRF-80153 $19 Painless Performance Products; on/off keyed switch

start Summit Racing PRF-80503 $23 Painless Performance Products; momentary push-button switch

fan Summit Racing PRF-80502 $10 Painless Performance Products; on/off toggle switch; heavy duty 20 amp

fuel pump Summit Racing PRF-80502 $10 Painless Performance Products; on/off toggle switch; heavy duty 20 amp

headlight Summit Racing PRF-80502 $10 Painless Performance Products; on/off toggle switch; heavy duty 20 amp

taillight/parking/panel Summit Racing PRF-80502 $10 Painless Performance Products; on/off toggle switch; heavy duty 20 amp

dimmer Summit Racing PRF-80150 $13 Painless Performance Products; dimmer switch

brake Summit Racing PRF-80172 $12 Painless Performance Products; push-button

turn signals Summit Racing PRF-80514 $17 Painless Performance Products; on/off/on toggle switch; heavy duty 20 amp; double pole

horn Summit Racing PRF-80503 $23 Painless Performance Products; momentary push-button switch

remote disconnect Summit Racing PRF-30205 $113 Painless Performance Products; w/emergency button/solenoid ignition cutoff

Indicators lights:

turn signal Summit Racing PRF-80203 $6 Painless Performance Products; amber LED

hi-lo beam Summit Racing PRF-80206 $6 Painless Performance Products; blue LED

alternator conversion Moss 130-068 $151

gauges:

speedometer Summit Racing ATM-3992 $78 Auto Meter - Sport-Comp; 3 3/8"

tachometer Summit Racing ATM-3991 $92 Auto Meter - Sport-Comp; 3 3/8"

fuel level Summit Racing ATM-3314 $37 Auto Meter - Sport-Comp; 2 1/16"

oil pressure Summit Racing ATM-3321 $42 Auto Meter - Sport-Comp; 2 1/16"

voltmeter Summit Racing ATM-3391 $38 Auto Meter - Sport-Comp; 2 1/16"

water temperature Summit Racing ATM-3333 $70 Auto Meter - Sport-Comp; 2 1/16"

Fuel system:

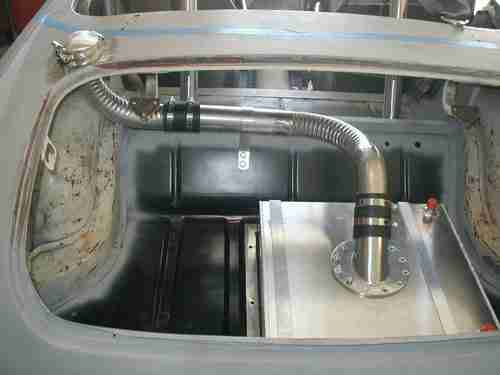

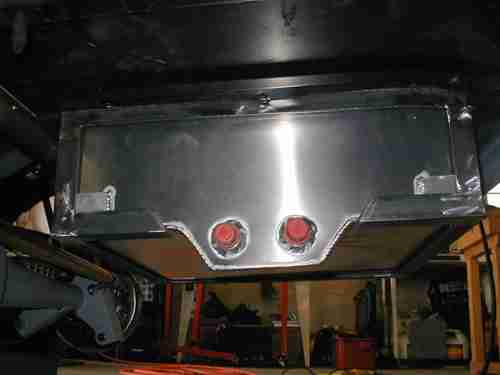

fuel cell Summit Racing SUM-293210 $166 aluminum; 16.5x16.5x9; 2" sump; -8 AN fittings; w/foam

fuel cell filler Summit Racing SUM-290191 $70 aluminum; 6 or 12 bolt

fuel cell split ring Summit Racing SUM-290192 $20 required for 290191

fuel sending unit Summit Racing SUM-290180 $80 8 1/5" long; 0-90 ohm/GM

fuel pump Summit Racing HLY-12-801-1 $106 Holley 97 GPH, 7 PSI, red

fuel regulator Summit Racing HLY-12-804 $28 Holley 1-4 PSI; chrome

Interior:

bomber seats Autocraft Interiors $425 pair; aluminum w/black diamond covers

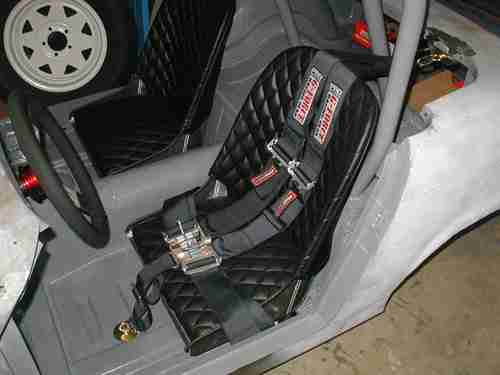

racing seats Summit Racing KIR-36900 $300 $149.95/each; Kirkey; 1/8" aluminum; 20 degree layback; 18" width

seat covers Summit Racing KIR-36911 $180 $89.95/each; Kirkey; black cloth

harnesses Summit Racing GFR-6020BK $140 $69.99/pair; black; 3" pull down; latch and link; 4 point/V type

seat belt mounting backup plate Summit Racing GFR-100H $15 $2.99/each; 5 required; steel

seat belt eye bolt Summit Racing GFR-109H $16 20mm; $3.99 each; 4 required

shoulder belt snap hook Summit Racing GFR-107W $14 3"; $6.99 each; 2 required; NOT AVAILABLE FROM SUMMIT

anti-sub belt snap hook Summit Racing GFR-107H $6 2"; $2.99 each; 2 required

harness pads Summit Racing GFR-4098BK $40 $19.99/pair; two pair required; black; 3"

rubber mats Ebay-jackemery $36

tonneau $287 will need to be altered to fit around roll bar and high back seats

convertible top The Winner's Circle $203

side screens polish aluminum frames; replace Plexiglas

door locks and strikers Ebay-NOS Locators $40 strikers free with locks

Trim:

roll bar

dual bullet racing mirrors Ebay-NOS Locators $40 chrome

dash mirror Ebay-NOS Locators $14 chrome

top retainers Ebay-NOS Locators $9 chrome

fuel cap Ebay-britboy55 $165 Enots Aston lockig fuel cap; 2 1/2" diameter; polished alloy

quick disconnect steering hub Summit Racing REB-270-8630 $60 Rebco 270-8630; 3/4" shaft

steering wheel Summit Racing REB-270-8638 $41 13"; aluminum/cushioned grip; black

shift knob Summit Racing MRG-9625 $10 Mr. Gasket; piston

Miscellaneous:

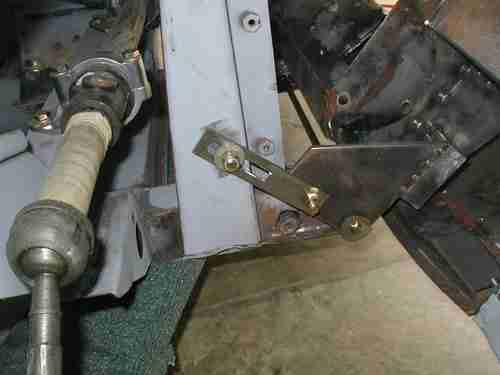

accelerator pedal Moss 260-340 $25

accelerator pedal link Moss 260-345 $12

Hopkirk pedal extension Moss 900-315 $27

camera mount Rivergate 75000 $90 Billet Camera Mount

--------------------------------------------------------------------------------------------------------

PROJECT TOTAL (including engine) $24,466
