2013 Mercedes-benz Sprinter 144" Outsidevan Conversion on 2040-cars
Grass Valley, Oregon, United States
Feel free to email: donovandsstabs@antieuro.com .

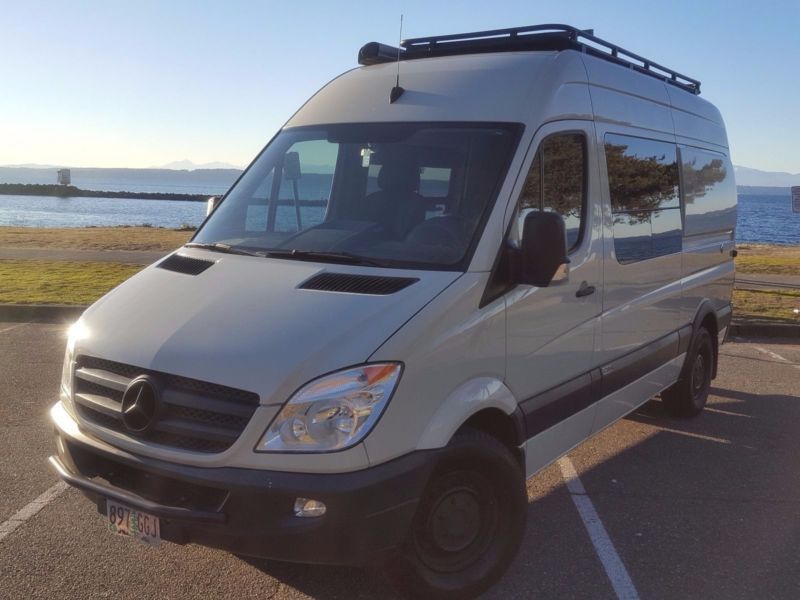

2013 Pebble Gray Mercedes-Benz 144" High Top Sprinter Van
This van was professionally converted by Outsidevan. Every detail of this van has been carefully thought through
and expertly crafted. Outsidevan currently has a 1 year long queue for conversions ... this van is ready today.
It includes *everything* AND the kitchen sink (of course). Very little expense was spared. Starting with fully
insulating and paneling the walls with carbon look. The bed is arranged as a sideways sleeper with flares by
Flarespace. This allows for waaay more space in the van overall (I also have a third panel which allows for
conversion back to a full parallel sleeping arrangement).The layout of the van allows for a few different options

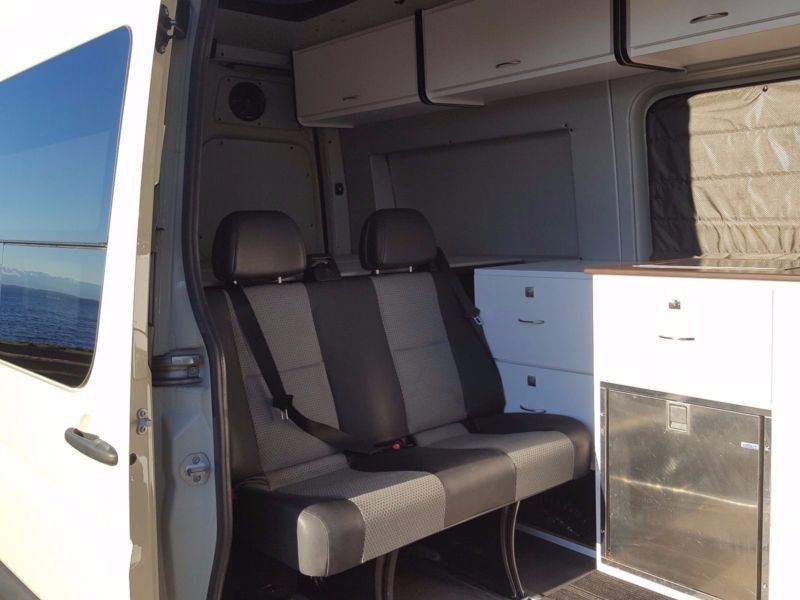

for travel. If you have some friends on the trip with you, you can keep the extra row two seater bench seat in the
van. If not, you can remove the 2 seater and allow some extra space for gear.
Some of the luxuries ...

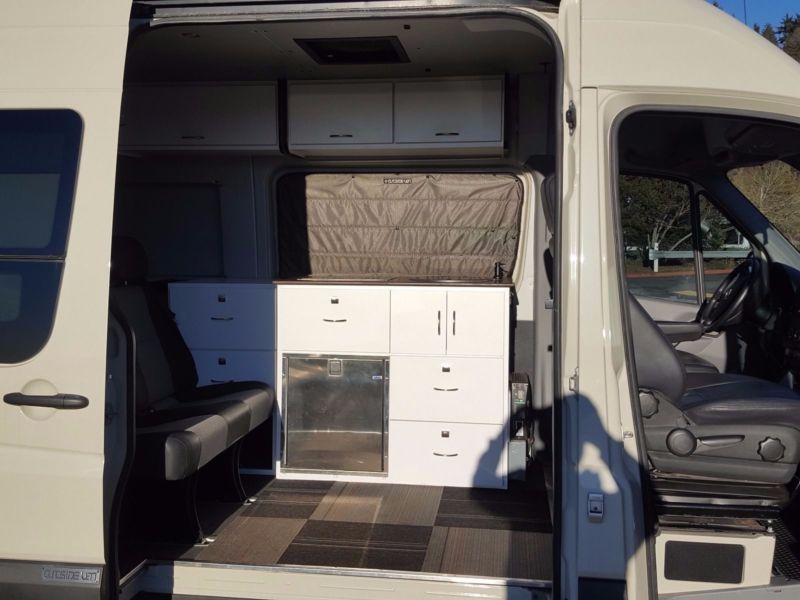

The custom galley includes a sink, butane stove, and Isotherm DR65 fridge. The countertop is sustainable durable
paperstone. The Isotherm is the perfect balance of size, accessibility and power consumption. The fridge operates
both AC and DC and switches automatically. The sink is fed by an ultra efficient pump and a 15 gallon water tank
over the rear driver's side wheel well.
In addition to the galley drawers, there are matching upper cabinets to stow more gear and supplies for the road.
There's also a removable cabinet that sits to the left of the galley for even more storage on longer road trips.
There is a shower pan and shower attachment at the rear of the van for rinsing your body and rinsing your
bikes/boards etc.
The Espar D2 diesel heater keeps things toasty. It's fueled by the diesel van fuel tank and can easily keep the van
comfy on freezing nights.
There is an extensive power system. This includes a 100amp Zamp solar panel with charge controller ... along with
two 6V 220 amp hour batteries mounted under the chassis. The house batteries are charged while the van is in motion
and of course solar charged. Additionally, there is shore power which supports plugging the vehicle into a standard
15amp outlet. This allows for battery charging and powering accessories from AC power while plugged in.
The van includes a ARB compressor for inflating tires and kites or just cleaning the van of debris from being in
the country.
The dash is wrapped to give a refined carbon fiber appearance, matching the headliner and walls.
The driver and passenger seats are both air suspension seats. This is possibly one of the top 3 options on the van.
It allows for a way softer ride. This option is no longer available from the factory on new 144" vans. The
passenger seat is also on a swivel for seating while camped. The seats are black leatherette.
There is a full walkabout roof rack for extra gear or enjoying a cup of coffee at sunrise with a view.
The van comes with a Park Tools bicycle repair stand mounted on the inside of the rear door and also comes with a
Park Tools professional tire inflator for use with the compressor. Additionally there are two fork mounts on the
interior of the van for mounting bikes under the bed ...
There is a 8' Fiamma awning that can be quickly cranked out on hot days or provide cover on rainy days.
On the exterior, you've got a towing hitch (tows 5000lbs), ladder to access the roof, blacked out wheels/detailing
and tinted windows.
The Pebble Gray color is highly sought after. It's a very subtle gray and looks awesome contrasted with the blacked
out exterior details. Tires are a year old and brakes were just services. The van is in perfect shape ready for the
road. It has 58k miles, which is just a warmup for these vans.
Additional details ...
Interior 144":
Full Interior for Sprinter 144": Full insulation with mahogany luan, close cell acoustic foam, closed cell charcoal
rubber wainscoting walls and headliner to be silver carbon headliner.
Floor 144":
Sealed closed cell rubber Charcoal
Carbon Fiber Dash:
Carbon fiber wrapped dash panels
Window opposite slider T vent:
Aftermarket deep tinted window opposite slider with 2 large t-vents and screens
Window slider T vent:
Aftermarket deep tinted window in slider with large t-vent and screen
Power system:
Full Power System: 2 DEKA AGM batteries in powder coated box, 4 stage 45 amp digital charging system, Xantrex 2000
inverter with digital read-out, shore power w/ automatic transfer switch
12V Outlet:
12V Outlets (2 above bed) for reading lights and USB adapters. 1 Exterior to sliding door.
LED 2.79 inch lights in ceiling:
LED 2.79 inch white lighting installed on ceiling. Single light on switch grouped with other two light switched on
the c column right behind the slider door. Single light to be in the wall above the bed on the driver side
2 Panel Bed System (3 panels included with option to convert back):
2 panel powder coated aluminum bed panels and rails- standard height 37" features spring loaded locking quick
release - bed panels contoured to rear doors
Van Flares:
Flares add an additional 7 inches of sleeping height for sideways sleeping.
Vent with fan:
Screened roof vent with 3 stage reversible fan. forward location blacked out
Vent, passive:
Roof vent passive with smoked lid. Rear location blacked out
Diesel Airtronic Heater:
Airtronic System for Diesel powered cabin heat integrated into wheel box. Wrapped in sealed rubber
Cabinet Galley:
Galley cabinet with full size stainless steel sink with glass top and collapsable faucet. Butcherblock countertop.
Single burner butane stove. No Refrigerator. Large drawers down low and smaller drawers up top. driver side .
Laminate to be white microdot .
Water system:
Water system: 15 gallon fresh water tank, plumbing, external water fill, water pump and water filter. built in
wheel tub boxes on driver side
Shower:
Shower in the back ambient.
OSV Shower, stainless pan:
Outside Parts stainless steel shower pan in back with drain and standard shower curtain.
Extra row of seating:
Removable in rear of van
Mac Track:
Mac Track on walls at seam from slider back. Into existing infrastructure
Seat Base, Swivel:
Swivel passenger seat base installed
Air Suspension Seats:
Driver and passenger air suspension seats.
Snap in window coverings / insulation:
Outside Parts snap-in curtains for driver and passenger side t-vent windows.
Tinted windows:
Deep tint for driver and passenger window
Powder coat wheels:
Powdercoat customer or OSV wheels, matte black (set of 4)
D-Ring Kit:
D-Ring kit of 8 installed.
Ladder, rear door:
Rear door ladder powder coated matt black . With extended magnet stop so door will not open to van and dent it.
Front Nudge Bar:
OSV Nudge Bar 2 Light Anthracite
Roof Rack, Custom:
Full-sized aluminum custom low-profile walkabout roof rack powder coated matte black with 8 mac track anchor spots
(4 on each side) spaced evenly.
Fiamma 8' Awning:
8' Fiamma awning above slider door in Black
OSV Sun Shades windshield:
Outside Parts sun shade insulated and in mini diamond for front windshield (allows for blackout of cabin area)
OSV Sun shades for driver/ passenger window:
Outside Parts cover for the driver and passenger window, set of two. Matches windshield cover (allows for blackout
of cabin area)
LED Load Lights:
High output LED load lights at top of rear door openings. Set of two on separate switch by rear door.
Bike Repair Stand:
Park Tool wall mount repair stand installed on rear door with infrastructure. driver side rear door
Fork Mounts:
Fork mounts in van. Fork mount attached to Next gen plate with single mactrack stud and knob and mac anchor plate
standard 9mm or 15mm QR
Hitch, rear:
2" Rear hitch with 7 way wiring
Solar:
100 Amp Zamp Solar System
Upgraded Stereo Sound System w/ Navigation and Alarm:
Kenwood DNX891HD,Ipod/USB bluetooth compatibility wired into aux batteries on a separate switch, connected to
steering wheel controls, Hertz rear door speakers, upgraded front door speakers and dashboard tweeters (Hertz)
Kicker 10" subwoofer built into a box under the passenger seat with a JL 5 channel Class D Amplifier, Ultrasonic
sensor and hood pin
Delivery may be possible.
