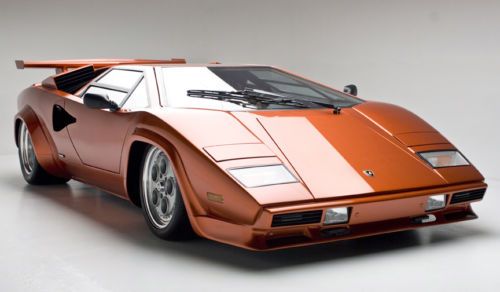

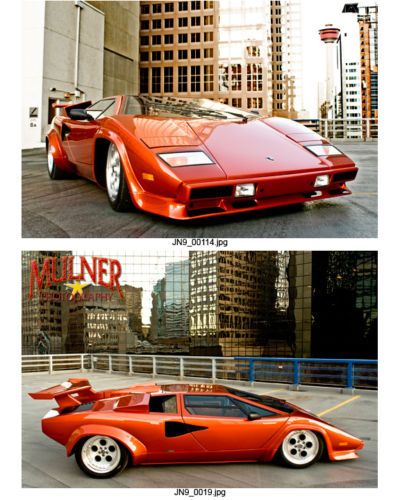

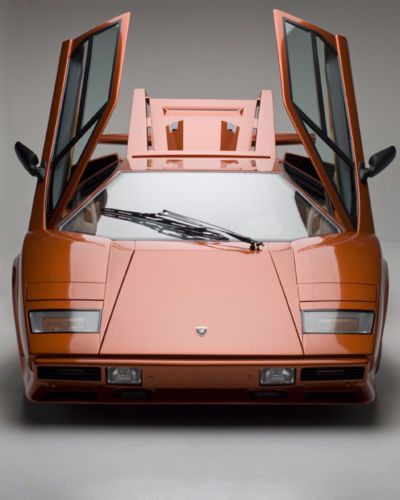

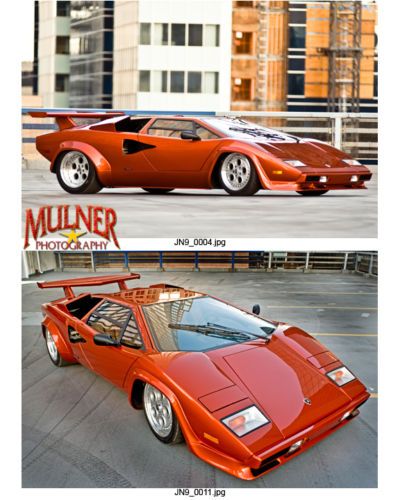

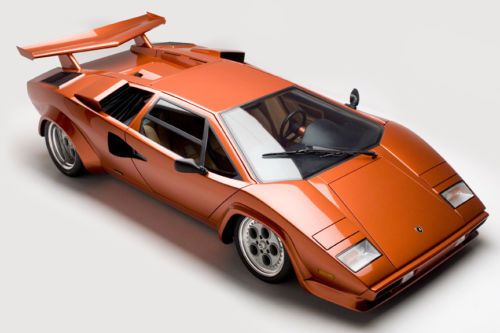

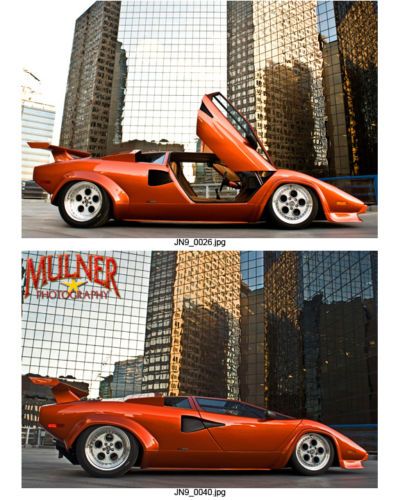

Hand Crafted vehicle, fashioned after the Lamborghini Countach.

Odometer:      5,000 Miles or more dependent on future use.

Color:              Flaming Orange

Curb Weight:  3,383 Lbs

Photos Located at    http://s898.photobucket.com/albums/ac187/Bob_Fonger/

This vehicle was completely custom built under contract to meet or exceed the following stipulations.

Must be of Show Quality

Must be Daily Drivable in the City.

The Frame:

Custom Built Frame using the fundamental Provo Design with many custom enhancements and improvements.

Integrated Roll Bar added.

Widening of driver foot area for safe pedal operation,

Enhanced materials for improved structural integrity.

Custom Door Hinge plates directly to Frame.

Suspension “A” Arm hinge points completely custom fabricated to racing spec.

Under Belly Steel Plating.

The Suspension:

Custom Built “A” Arms to racing spec, with full adjustability for Camber and Toe In.

Custom Built CNC machined Cantilever Rear Suspension components.

Built to accept the Ride Tech Air Ride Technologies Shock Wave Air Ride Shocks.

Air Shock System:

Ride Tech.com Air Ride Technologies Shock Wave “IS”  “Internal Sensing” Air Shocks used front and back.  These Air Shocks use Infra Red Lasers inside each shock so the computer can monitor the exact extension position of each shock compared to knowing only the air pressure in each shock.

The Air Ride Computer analyzes both the Air Pressure and Laser Electronic Position of each Shock to give a much more accurate Ride Height achievement and also uses both sets of information to eliminate any Cross Load conditions the suspension may be under.

The shocks are their military spec Laser Sensor shocked developed for the Hummers for the US Military.

Air Ride Technologies Ride Tech E3 Air Pod Air Suspension System.  The high tech electronic e3 control system can intelligently utilize both air pressure and ride height information to accurately adjust vehicle suspension level.

Air Pod System with 5 Gallon Tank, Two Compressors with electronic staggered turn on to eliminate electrical load bumps,

Big Red Valve system for max air flow.

The suspension system has 3 Presets, Low for show, 2 for drive, 3 for Parking Lots.

Full Up you can crawl under car and change the oil, using safety blocks of course.

2 X Air Compressors and Computer system to control suspension with Air Tank all custom installed in the front of car.

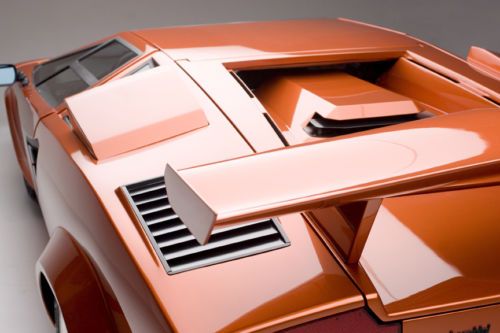

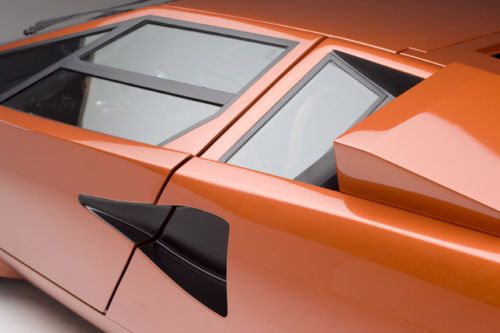

Body:

The Body is Fiberglass construction and manufactured by PROVO in the UK.

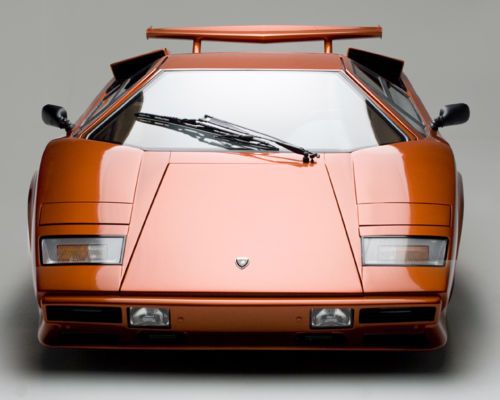

Fashioned after the Lamborghini Countach.

PROVO Molds were made off an actual Countach so the dimensions are as close as you can get, if not exact to the real Countach.

Since we were not trying to do a replica we took liberties to do some modernizations such as flush fitting side marker lights.

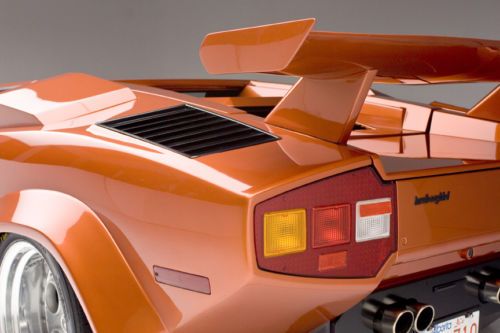

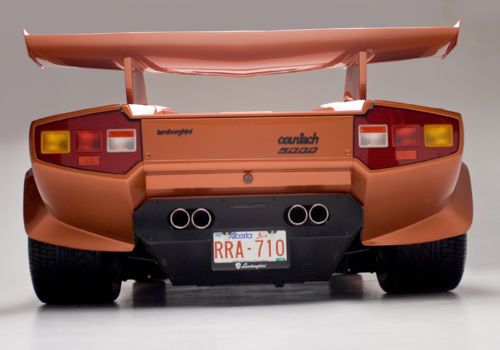

Authentic Lamborghini Head Lights, Front running lights and lenses, Fog Lamps, Tail Lights, Wiper Motor and Arms, Electric Side Mirrors.

Curb Weight is 3,461 Lbs

Brakes:

Wilwood “6 PISTON” Disc Brakes all around.

You want to go fast, you have to stop fast.

Stops on a dime, straight as an arrow, from high speed.

Motor:

GM LT1 F-Body with LS2 Ignition System and Computer.

5.7 L (350 cu in)   V8  Fuel Injected.

Originally it displaced 5.7 L (350 cu in) and was a 2-valve pushrod design. The LT1 used a reverse-flow cooling system which cooled the cylinder heads first, maintaining lower cylinder temperatures and allowing the engine to run at a higher compression than its immediate predecessors.

Gm  Lt1 “F” Body with “Reverse Flow Cooling”  “Huffed” completely professionally rebuilt with all new high performance parts and valve guides.

New LS2 Ignition System, Coil per Cylinder, Fully Programmable LS2 Computer.

New Electric Water Pump.

New Custom High Capacity Alternator.

New High Torque Starter.

New Air Conditioner Compressor.

New Custom Built set of Headers.

New 2 Radiators,  2 Condensers.

Joe Digs Synthetic Hot-Rod   10W-30  Car has had 6 oil changes every 1000 KM.

Spark Plugs                             NGK TR6   Gapped at (.030”)

Fuel Injectors                          Delphi Injectors LT1 + TPI (GM.) 42 Lbs/Hour

Dyno at 507 HP at 5,600 RPM

Rev Limiter set to 6,100 RPM

Transmission:

5 Speed Manual.

Porsche G50 Tran axial.

Custom rebuilt in California with new Gear ratio set and Steel Syncro’s, Oil Pump, Re-enforced Case and all other high horsepower G50 Mods.

Transmission Fluid                Royal Purple   75-140

Electrical:

2 X Moto Master Car Batteries Maintenance Free High Out Put.  Located Front and Rear.

Intelligent Guard Battery Controller.  Located Front Battery.

Battery Jump Terminal Lugs Installed at Passenger Rear Wheel Bay.

Battery Maintainer Charger leads hard wired with plug at rear of car near Licence Plate.

Tires and Rims:

COMPOMOTIVE  Rims  17” Diameter  6” to 15” Width

FRONT           Pirelli  PZero  235/40  ZR  17  90Y                                                   Front Tires.

REAR              Pirelli  PZero  335/35  ZR  17    System Asimmetrico         Rear Tires.

Fuel System:
Twin Fuel Tanks 30 Liters per side for 60 Liter total Capacity.

Switched Fuel Gauge and gravity Cross Feed System for fuel management.

 Heat and Air,  VINTAGE AIR SLIMLINE Model# 11300-VUZ-A

Cruise Dakota Digital CRS-3000 Cruise Control.

Tilt,

Power Windows,

Power Lift Scissor Doors,

Power Lift Front Hood,

Power Lift Engine Cover.

Power Lamborghini Side Mirrors.

AUTO LOC KL-1600 Keyless Entry System Key Fob System and Actuator Timers for all Electric Lift Rams.

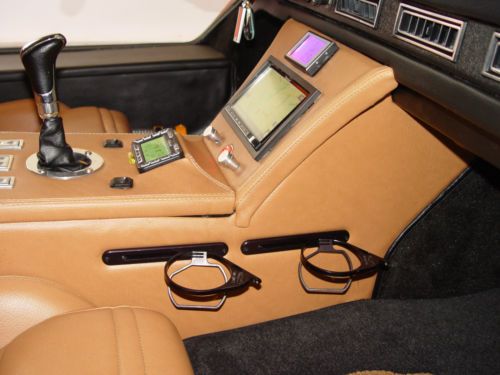

Computerized Vehicle Telemetry System:

Computerized Vehicle Telemetry System that shows and records HP, Torque, and G Forces, Times, Max Speed, Watts, Volts, 1/4 mile and general info.

Pioneer  AVG-VDP1 Vehicle Dynamics Processor.

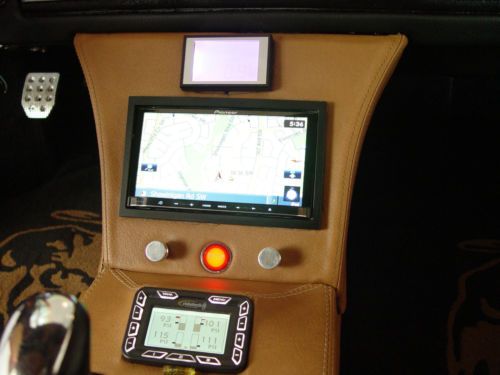

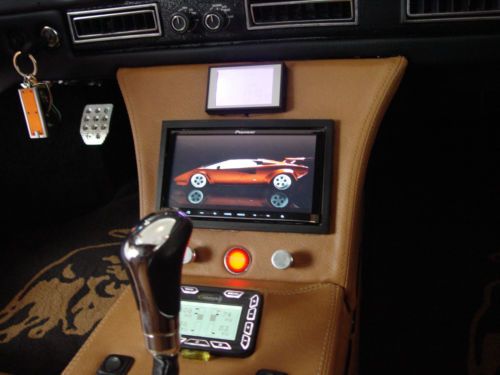

Pioneer AVD-W6210 Touch Screen.

Traffic Light Preemption system.

Yes turn Controlled Intersection RED Lights to GREEN.  How James Bond is that!

Yes it has this.  I am NOT kidding.

Forward and Rear Looking Cameras:
Video front and rear on main screen and rear view mirror that is a screen as well.

Car Show Side Video Screens with Audio and I-Pod Video Player:

Video Screens in both rear side windows with audio to play videos at car shows.

TFT  LCD  Color Side Monitors in Rear Windows.

Bell Radar and Laser Jammer System. Jammers front and back.

BELL PRO REMOTE PLUS  Model RX-75-PLUS  Radar Detector System.

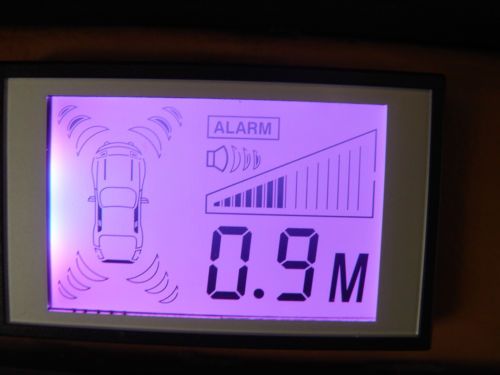

Front, Rear and Side electronic distance sensors for obstacle clearance and lane change alert.

Stereo System:

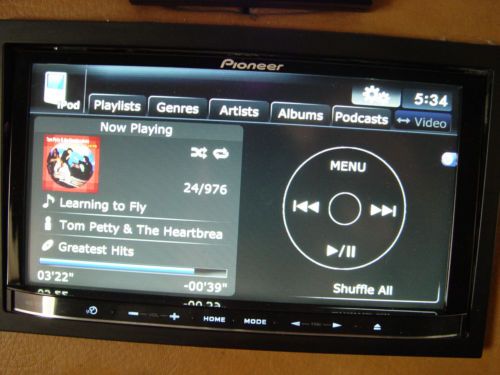

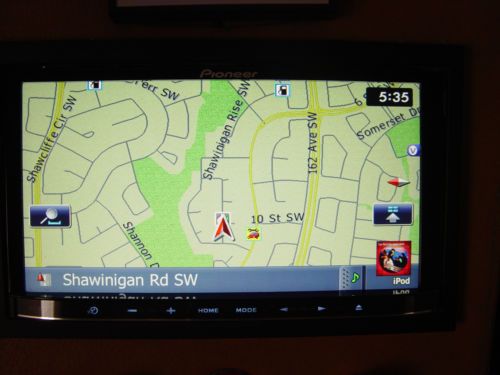

Pioneer AVIC-Z110 BT Stereo Head unit.

Focal Utopia “BE” Beryllium Speakers

Focal Utopia BE Cross Block  Adjustable Cross Over Balancing System.

Audison Amplifiers.

Main Amp is Audison  LRX 4.1

Second Amp is Audison LRX 2.4

All Audio wires 0 percent loss.

DAKOTA DIGITAL:

Dakota Digital CRS-3000 Cruise Control.

Dakota Digital Odyssey Fuel Pressure Gauge.

Dakota Digital Odyssey Clock with Temp and Compass.

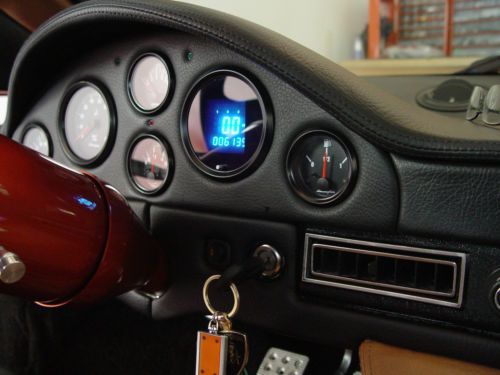

Dakota Digital ODYR-01-6 SOLARIX  Digital Speedometer with Tach and Turn Indicators.
