1929 Ford Model Roadster Hiboy Custom Built Hot Rod on 2040-cars

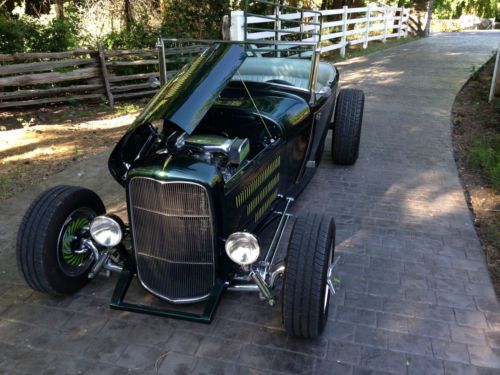

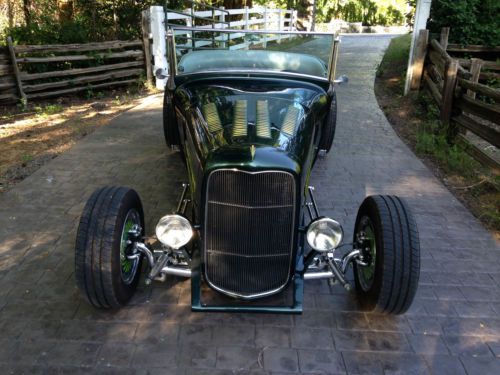

1929 FORD MODEL ROADSTER HIBOY

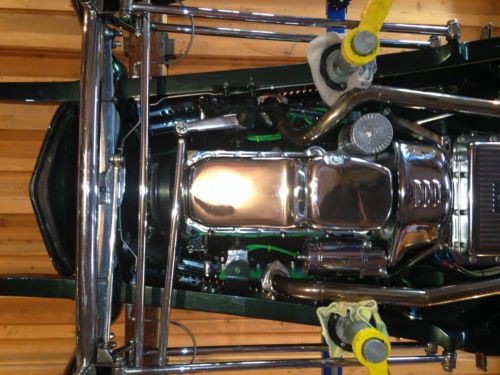

CHASSIS:

1932 FORD FRAME RAILS FOR "JUST A HOBBY"

FRONT, CENTER, AND REAR CROSS MEMBERS BY "MAGOO"

ALL WELDS ARE FILLED

FRONT AND REAR FRAME RAILS HAVE BEEN "C ' D" FOR LOW STANCE

FRAME HAS BEEN PINCHED 3" FOR PROPER COWL TO FRAME RAIL FIT

ALL HARD BRAKE LINES ARE 3/16 S/S WITH AN-3 FITTINGS

1966 FORD MUSTANG MASTER CYLINDER WITH 1 1/8 RAM

MIDLAND 850PSI POWER BOOSTER WITH ALUMINUM MOUNT

CHROME BRAKE PEDAL

BRAKE PEDAL RETURN SPRING BY "MAGOO"

WILWOOD PROPORTIONAL VALVE SET AT FOUR (4) TURNS OFF

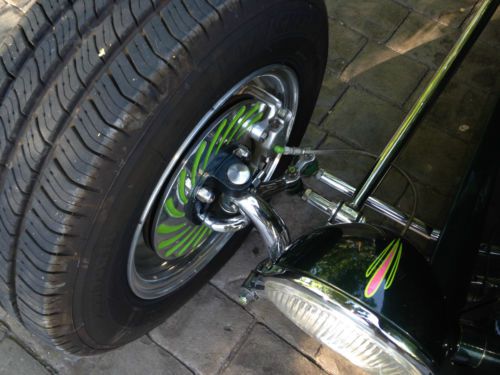

WILWOOD 2 PISTON CALIPERS FRONT AND 4 PISTON CALIPERS REAR

REAR BRAKE LINES ENTER BODY AT BOOSTER WITH AN -3 FITTING

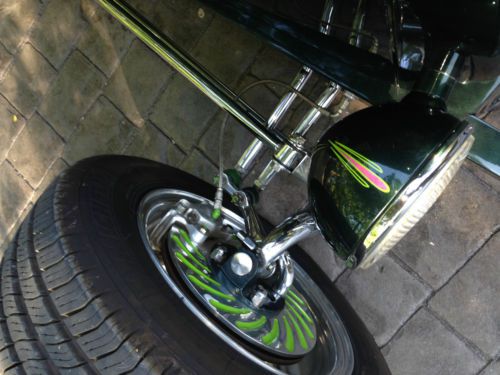

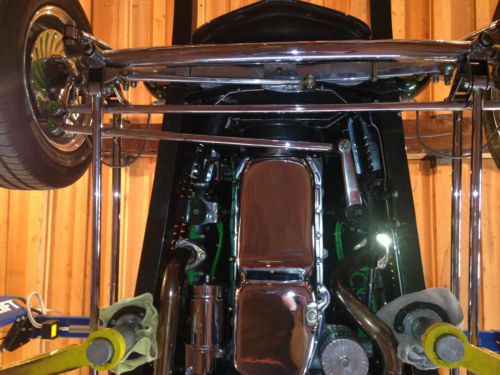

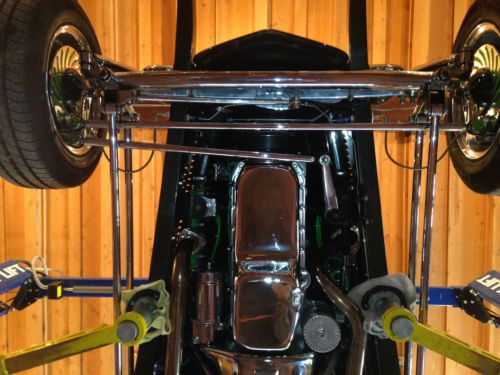

4" DROPPED FRONT AXLE BY "SUPER BELL" (CHROME)

5 LEAF SPRING WITH S/S SHACKLES (CHROME)

4 BAR (CHROME)

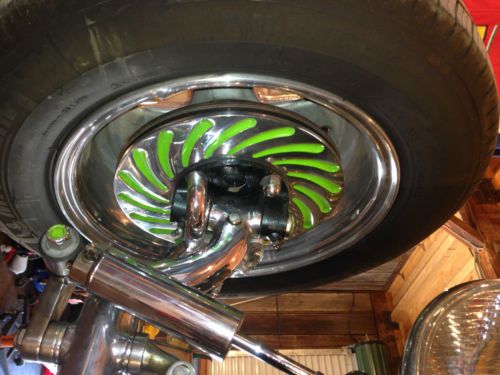

"SUPER BELL" SPINDLES WITH S/S KING PINS

BRAKE CALIPER MOUNTS BY "MAGOO" (POLISHED)

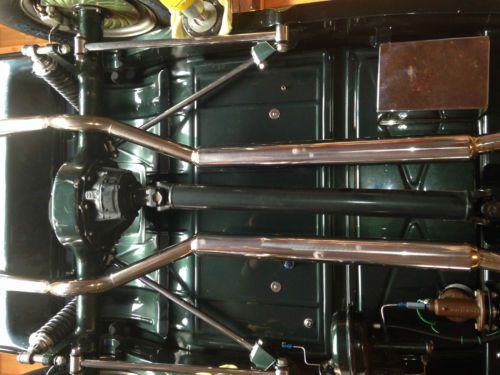

9" FORD REAR END WITH SMALL BEARING AXLES

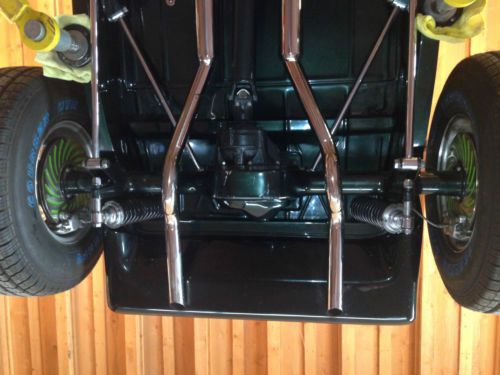

TRIANGLE 4 BAR FOR REAR (CHROME)

ALDEN FRONT SHOCKS WITH 15 ADJUSTMENTS S / S

ALDEN REAR COIL

OVER SHOCKS WITH 15 ADJUSTMENTS 180# SPRING

S/S EXHAUST WITH BORLA MUFFLERS BY "MAGOO" (POLISHED)

CHROME REMOVABLE TRANSMISSION MOUNT

CHROME MOTOR MOUNTS

VEGA CROSS STEERING BOX WITH S/S PITMAN ARM

CUSTOM S/S STEERING COLUMN BY "MAGOO"

WALKER "S" RADIATOR WITH 160 THERMOSTAT

ALL BOLTS ARE CHROME OR POLISHED S/S WITH NY LOCKS

BODY:

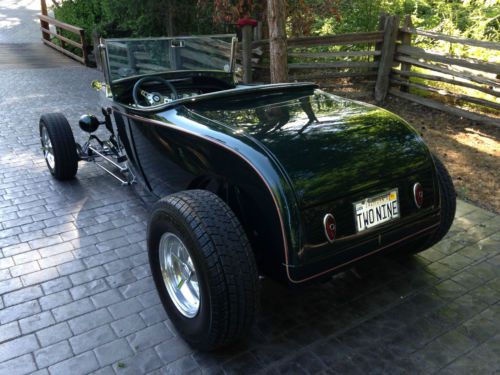

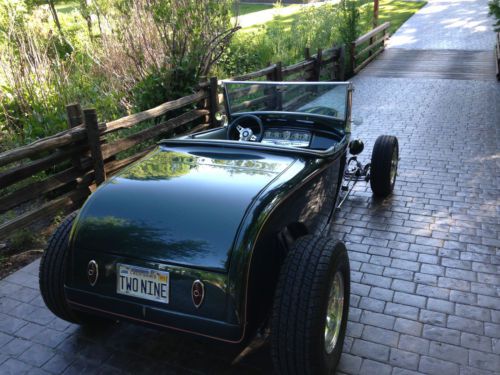

1929 FORD ROADSTER BY WESCOTT

REAR ROLLED PAN BY "MAGOO"

COWL FILLED AND WINDSHEILD DROPPED 2"'

RADIATOR SHELL BY WESCOTT

32 GRILL WITHOUT CRANK HOLE FROM "C.W. MOSS"

GEAR SHIFT BY 'GENNIE"

KICKDOWN AND THROTTLE CASLES BY "LOKAR"

S/S WINDSHIELD POSTS WITH CHROME WINDOW FRAME 2" CHOP

MIRRORS FROM "MAGOO"

ALUMINUM HOOD AND SIDE PANELS FROM "MAGOO"

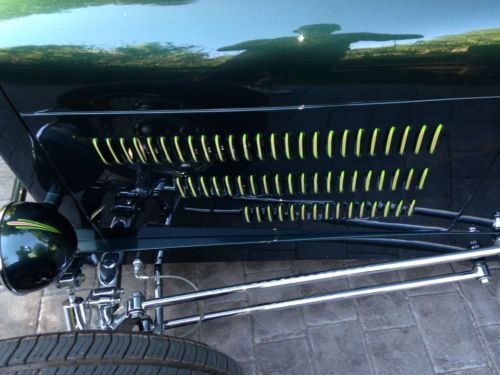

HOOD BRACES AND 214 LOUVERS BY BOB BERG OF WHITTIER

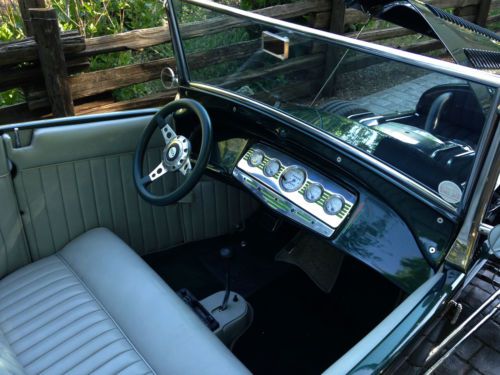

AUBURN DASH AND ALUMINUM PANEL BY "MAGOO"

WIRE PANEL BY "ENOS"

ALL WIRE TEFLON COATED

IGNITION AND HEADLIGHT SWITCH FROM "RON FRANCES"

CARTER ROTOS/VAIN ELEC FUEL PUMP WITH AN-6 BRAIDED S/S LINES

34 GAL S/S FUEL TANK FROM "TANKS" WITH LT SIDE DRAIN PLUG

VDO GAUGES AND SENDERS

"MB" CANVAS TOP WITH "MBV" LEATHER HEADLINER WOOD BOWS AND S/S RUNNERS

LACARRA STEERING WHEEL AND ADAPTER

S/S BATTERY BOX UNDER SEAT (POLISHED)

AUDIOVOX RADIO AND SPEAKERS

1988 GMC DARK HUNTER GREEN MET PAINT (DITSLER #4L08) 2 STAGE

POLYURETHANE WITH A CLEAR BY DUPONT CHROMAR

FUSHIA AND LIME GREEN PIN STRIPPING BY TOM OTIS (ITCHY) OF WOODLAND HILLS

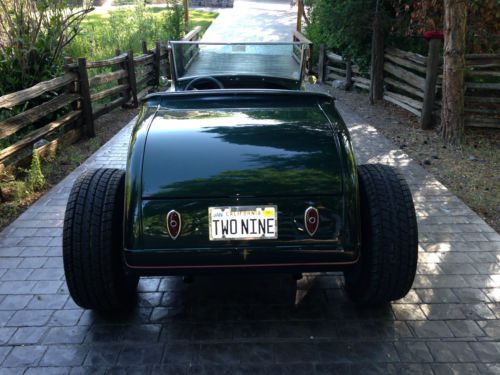

1939 FORD TAILLIGHTS WITH BLUE DOTS

KING BEE 7" HALOGEN HEADLIGHTS

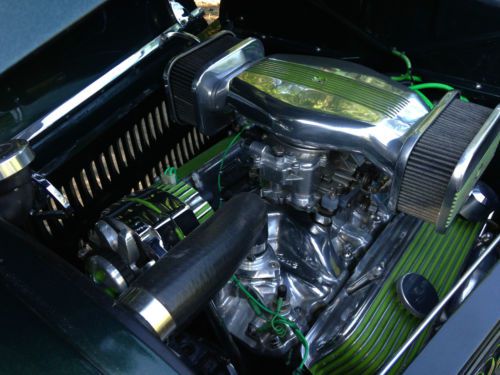

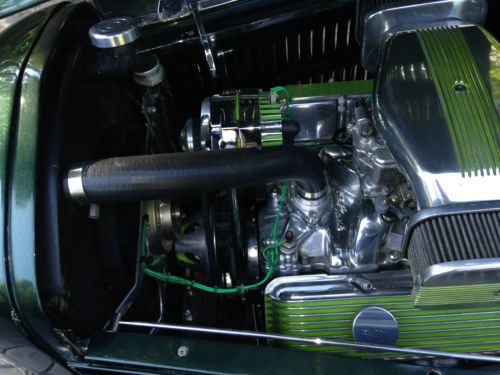

ENGINE

1972 CHEV 350 BLOCK WITH 4 BOLTS MAINS .040 OVER

TRW FORGED PISTONS WITH MOLY RINGS (9-1)

GM “PINK” RODS

STEEL CRANK

BALANCED AND BLUEPRINTED BY WESTERN PERFORMANCE OF GLENDALE

1978 CHEV HEADS WITH PEANUT SPARK PLUGS (R45TSX)

1.94 INTAKE AND 1.50 EXHAUST S/S VALVES

POCKET PORTING IN HEADS

BLOCK AND HEADS HAVE BEEN DEBURRED

EDLEBROCK PERFORMER CAM AND MANIFOLD

ROLLER TIP ROCKER ARMS BY COMP CAMS

CAL CUSTOM VALVE COVERS

63 AMP ENOS CHROME ALTERNATOR

ENOS CHROME STARTER

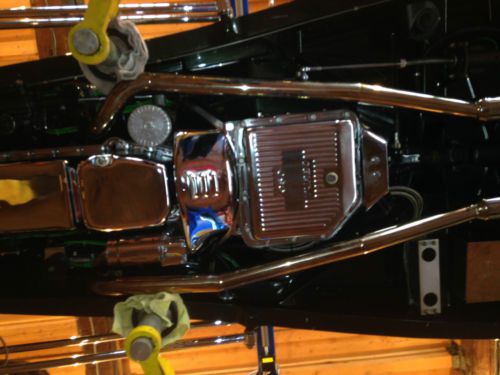

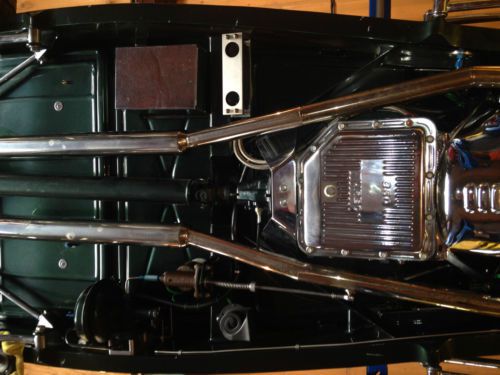

GM TURBO 350 TRANSMISSION WITH SHIFT KIT AND 2000RPM CONVERTER

10,000 LBS TRANSMISSION COOLER BY “EARLS” WITH S/S LINES

ALL BOLTS ARE POLISHED S/S

MOROSSO HIGH VOLUME WATER PUMP

SINGLE GROOVE ALUMINUM PULLEYS

STOCK GM DISTRIBUTOR

TAYLOR 8MM WIRES

HOLLEY 4010 CARE WITH MECHANICAL SECONDARIES

SUMMIT FUEL LINE WITH GAUGE (CHROME)

14” ELECT FAN BY “MAGOO”

MELLINGS HIGH VOLUME OIL PUMP

STAGE 1 OIL FILTER

IF YOU HAVE ANY QUESTIONS, EMAIL BRIAN ODBERT AT B.ODBERT@LMCCARS.COM OR CALL 530.440.6900
