1986 M1008 Cucv Chevrolet Pickup W/ Plow (government Surplus) on 2040-cars

The GM CUCVs were produced in the 1983-86 time period (model years were 1984-87 and mostly 1984) and were powered by 6.2L Detroit Diesel V8 engine. The GM CUCVs were assembled mostly from the heaviest duty bits and pieces from the light commercial truck lines. The CUCVs came in four basic body styles: pickup, utility, ambulance body and chassis cab. The M1008 was the basic cargo truck, the M1010 was the ambulance and the M1009 3/4 -ton utility rig, which was a stripped Blazer uprated to 3/4-ton capacity. With the exception of the M1009, the trucks were all rated as 1 1/4 ton (commonly called a “five-quarter”), even though some of them had payloads in excess of that. In the truck lines there were some heavy duty variants, to include the M1028, M1028A1, M1028A2 and M1028A3 shelter carriers, the shelter being a mobile command, communications or intelligence operations enclosure. The M1031 was the chassis cab which was most commonly found in the two door version. These latter trucks were all rated for heavier 3,600 or 3,900 pound loads, vs. the M1008s 2,900 pound load capacity. The M1028A2 and A3 models had dual rear wheels. Many M1028s were upgraded at the company level to M1028A2 and A3 specs. The Dual wheel rear end was a result of incidents where the M10128 flipped on its side because of the high center of gravity when carrying the equipment shelters.--

Powertrain

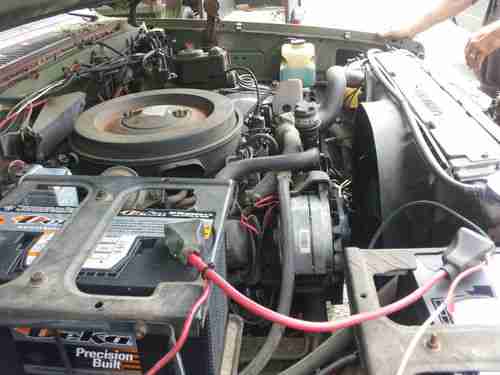

All the CUCVs were powered by GM’s 6.2L J-series Detroit Diesel V8 engine non-emissions diesel. These were rated at 155 hp (116 kW) and 240 lb·ft (325 N·m), which was 5 hp (3.7 kW) more than the emissions diesel engine of the time. They were all equipped with the TH-400 automatic. All but the M1028A1 and M1031 used the NP-208 chain drive transfer case. The M1028A1 and M1031 units had a slip-yoke rear output version of the NP-205, which was specified mainly for its PTO capacity.

Axles

The M1008 trucks used open Dana 60 front axles, with the M1028 and M1031 variations often having a Trac-Lok limited slip. In the rear, the M1008s used the GM 10.5-inch (270 mm) 10.5" Corporate 14 Bolt Differential with No-Spin lockers (the commercial trade name for the Detroit Locker). Though the M1028A2 and A3 duallies have Dana 70 HD axles. Axle gear ratios were 4.56:1.

Electrical

As with other military vehicles, the CUCVs used a 24-volt electrical system. It was actually a hybrid 12/24-volt system that used 24-volts under the hood, complete with dual 100 amp alternators, the mandatory NATO slave receptacle for jump starting any NATO vehicle, and hookups for military radios. The rest of the truck was 12-volt.

GM Defense

GM produced some 70,000 from 1983 to 1986 most for the military. For the past several years, GM Defense has been working over the newest GM trucks as CUCV-II and CUCV-III units for a new generation. The older Dodge M880s were used on the battlefield in some of the brush wars of the early 1980s and the results were reported to be “disastrous.”^{[citation needed]} Likewise, the GM CUCVs saw combat time in Desert Storm and as one unit commander said, the results were “less than desirable.”^{[citation needed]}

However, CUCVs were not intended for direct frontline combat use, as evident by their lack of bulletproofing and no protection from improvised explosive devices or other ordnances. Windshield, cabin glass, and body panels are civilian-grade and offer no protection from firearms or explosives. As a result some CUCV's were replaced by the same HMMWV's they were to augment.

The original purpose of the CUCV was to be a dollar-saving bridge between out-and-out tactical vehicles and off-the-shelf civilian vehicles. CUCVs were intended to perform "background" roles, much like the rear echelon human troops, providing support for frontline forces, such as cargo transport, background support, ambulance, and communications.

It is these roles which the CUCV performed admirably enough, that the U.S. military continued to keep them in active service long after their projected lifespan. CUCVs of all generations are still in U.S. service, though there are also many that have passed through military surplus sales into civilian ownership. In U.S. military service, CUCVs have been removed from MTOE-based organizations in the Army and Marines, but are still in use as base / garrison support vehicles for organizations like Range Control, Base Facilities and Engineering, and other TDA^[?] uses.

Variants

• M1008 - Basic General Motors Model K30903. The M1008 was the most numerous of the CUCV truck types. It was often seen with troop seats for eight in the bed. Some of the unique accoutrements to a CUCV are the military brush bars and tow hooks front and rear, as well as a pintle hitch. These trucks are rated to tow 3,000 pound cross country and were often used to tow the M101 3/4 -ton trailer.
• M1008A1 - M1008 fitted with additional 100-amp 24-volt generator and communications kit.
