ENTERTAINMENT:

AM/FM stereo w/CD/MP3 player -inc: clock, satellite radio capability, audio input jack

EXTERIOR:

15" 7-spoke silver-painted steel wheels
Bi-color tail lamps
Black door handles
Black manual side mirrors
Body-color front/rear step bumper -inc: body-color painted face bar w/black lower front valance
Chromed H-bar grille

Compact spare tire
Front stone guards & rear mud flaps
P225/70R15 all-season OWL tires
Quick-release tailgate w/black handle
Raised "power dome" hood
Solar tinted glass -inc: windshield, front door windows & rear window
Variable-intermittent windshield wipers

INTERIOR:

12-volt aux pwr point
Air conditioning
Black urethane steering wheel
Black-faced gauge cluster w/black trim rings
Cloth 60/40 split bench seat
Color-keyed carpeted floor covering & front floor mats
Cup holders
Dome light

Driver/passenger A-pillar-mounted grab handles
Gauges -inc: tachometer, fuel, engine temp
Glove box

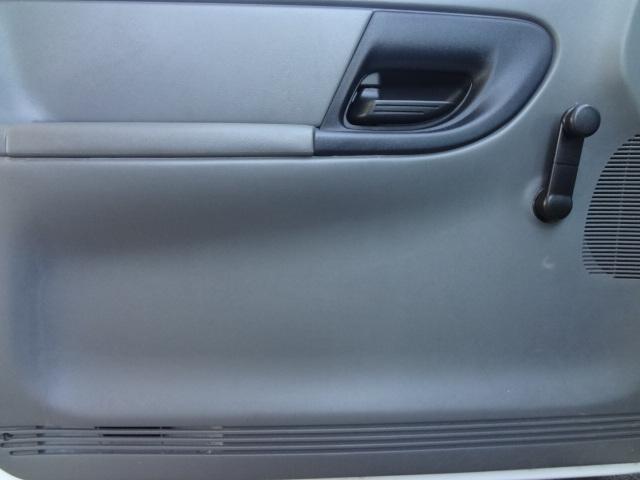

High series Ranger door trim panels -inc: cloth insert, map pockets
Manual day/night rearview mirror
SecuriLock anti-theft system
Smokers pkg -inc: lighter, ash tray
Sun visors -inc: driver side strap, passenger side vanity mirror

MECHANICAL:

(4) cargo box tie-down hooks
110-amp alternator
2-stage multi-leaf rear suspension
2.3L DOHC 16-valve I4 engine
4300# GVWR, 1180# maximum payload
5-speed manual transmission w/OD
58-amp (540 CCA) battery

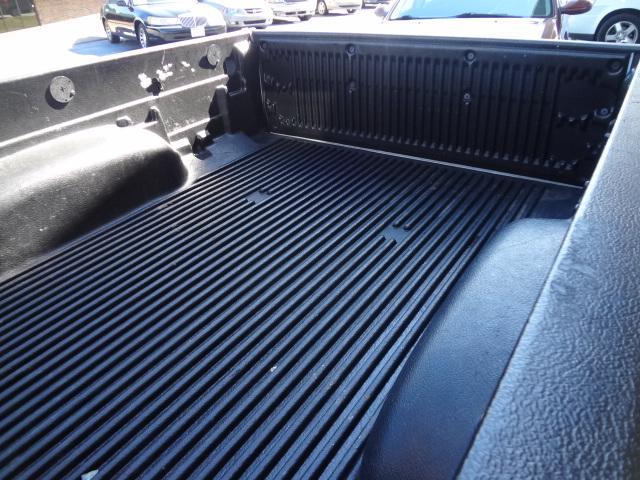

6' pickup box

90,000 mile tune-up interval
Front stabilizer bar
Independent short/long A arm front suspension -inc: coil spring
Pwr front disc/rear drum brakes
Pwr rack & pinion steering
Rear wheel drive
Trailer tow hitch receiver
Tuned gas shock absorbers

SAFETY:

4-wheel anti-lock brake system (ABS)
Center front lap belt

Driver & front passenger dual-stage airbags -inc: front passenger sensing system
Front shoulder safety belts -inc: height adjusters, pretensioners, energy management, retractors
Tire pressure monitoring system (TPMS)

Tech Specs:

Vehicle Name: Ranger Pickup
Body Style: Reg Cab 6' Styleside
Body Code: 111.5" WB
Drivetrain: Rear Wheel Drive
Passenger Capacity: 3
Gross Axle Wt Rating - Front (lbs): 2000
Gross Axle Wt Rating - Rear (lbs): 2350
Curb Weight - Front (lbs): 1797
Curb Weight - Rear (lbs): 1335
EPA Greenhouse Gas Score: 6
Gross Vehicle Weight Rating Cap (lbs): 4300
Fuel Economy Est-Combined (MPG): 23
EPA Fuel Economy Est - City (MPG): 21
EPA Fuel Economy Est - Hwy (MPG): 26
Gross Combined Wt Rating (lbs): 4800
Dead Weight Hitch - Max Trailer Wt. (lbs): 2000
Dead Weight Hitch - Max Tongue Wt. (lbs): 200
Wt Distributing Hitch - Max Trailer Wt. (lbs): 1580
Wt Distributing Hitch - Max Tongue Wt. (lbs): 158
Engine Order Code: 99D
Engine Type: Gas I4
Displacement: 2.3L/140
Fuel System: SEFI
SAE Net Horsepower @ RPM: 143 @ 5250
SAE Net Torque @ RPM: 154 @ 3750
Trans Order Code: 44R
Trans Type: 5
Trans Description Cont.: Manual
First Gear Ratio (:1): 3.72
Second Gear Ratio (:1): 2.20
Third Gear Ratio (:1): 1.50
Fourth Gear Ratio (:1): 1.00
Fifth Gear Ratio (:1): 0.79
Reverse Ratio (:1): 3.40
Clutch Size (in): 9.0
Cold Cranking Amps @ 0° F (Primary): 540
Maximum Alternator Capacity (amps): 110
Maximum Alternator Watts: 1650
Total Cooling System Capacity (qts): 7.2
Frame Type: Ladder
Suspension Type - Front: SLA w/Coil Springs
Suspension Type - Rear: 2-Stage Multi-Leaf
Spring Capacity - Front (lbs): 2000
Spring Capacity - Rear (lbs): 2350
Axle Type - Front: Twin-Forged SLA
Axle Type - Rear: Ford Semi-Floating
Axle Capacity - Front (lbs): 2400
Axle Capacity - Rear (lbs): 2750
Axle Ratio (:1) - Rear: 3.73
Shock Absorber Diameter - Front (mm): 35

Shock Absorber Diameter - Rear (mm): 35
Front Tire Size: P225/70R15
Rear Tire Size: P225/70R15
Spare Tire Size: Compact
Front Tire Capacity (lbs): 1594
Rear Tire Capacity (lbs): 1594
Spare Tire Capacity (lbs): 1984
Revolutions/Mile @ 45 mph - Front: 765
Revolutions/Mile @ 45 mph - Rear: 765
Front Wheel Size (in): 15 x 7
Rear Wheel Size (in): 15 x 7
Spare Wheel Size (in): Compact
Front Wheel Material: Steel
Rear Wheel Material: Steel
Spare Wheel Material: Steel
Steering Type: Pwr Rack & Pinion
Steering Ratio (:1), On Center: 22.0
Turning Diameter - Curb to Curb (ft): 37.7
Turning Diameter - Wall to Wall (ft): 39.7
Brake Type: Pwr
Brake ABS System: 4-Wheel
Disc - Front (Yes or ): Yes
Front Brake Rotor Diam x Thickness (in): 11.28 x 0.39
Drum - Rear (Yes or ): Yes
Rear Drum Diam x Width (in): 9.00 x 1.75
Fuel Tank Capacity, Approx (gal): 17
Fuel Tank Location: Midship
Front Head Room (in): 39.2
Front Leg Room (in): 42.4
Front Shoulder Room (in): 54.5
Front Hip Room (in): 52.7
Wheelbase (in): 111.5
Length, Overall w/o rear bumper (in): 189.4
Width, Max w/o mirrors (in): 69.3
Height, Overall (in): 66.2
Overhang, Front (in): 34.0
Overhang, Rear w/o bumper (in): 44.0
Front Bumper to Back of Cab (in): 107.6
Cab to Axle (in): 37.8
Cab to End of Frame (in): 81.8
Ground to Top of Load Floor (in): 29.7
Frame Width, Rear (in): 33.0
Ground Clearance, Rear (in): 7.9
Cargo Box Length @ Floor (in): 72.7
Cargo Box Width @ Top, Rear (in): 54.4
Cargo Box Width @ Floor (in): 54.4
Cargo Box Width @ Wheelhousings (in): 40.5
Cargo Box (Area) Height (in): 16.5
Tailgate Width (in): 52.0
Cargo Volume (ft³): 37.4

- Awards & Reviews

Automobile

COMPARISON

Among compact pickups, it's still the pick of the pack.

LIKED_MOST

Ranger team revised the suspension to quell the previous truck's somewhat wallowy ride and herky-jerky handling.

Car and Driver

Transmission will shift hard and fast when instructed by a heavy right foot.

Carpoint.com

ONE_LINER

Edge model I drove was loaded with enough gauges to satisfy a classic sports-car buff.

Edmunds.com

New Ranger edge is positioned between the XL and XLT and aimed at younger buyer.

The engine (4.0-liter) felt powerful at all times and even sporty.

Overall, we found the new styling to be, well, stylin'

Model Reviews

Available as a 4x2 Regular cab or 4x2 and 4x4 Supercab the Ranger is offered in four trims: XL, XLT, Sport and FX4 Off-Road. A 2.3-liter four-cylinder engine generates 143 horsepower and a 4.0-liter V6 engine produces 207 horsepower. Available transmissions include a standard five-speed manual or an optional five-speed automatic. The supercab is available as a two-door, or as a four-door with jump seats. A trailer hitch and safety features such as four-wheel anti-lock brakes and dual-stage front airbags are standard equipment. For 2009, the Ford Ranger is a carryover from 2008. The Ford Ranger has been America's best-selling compact pickup for 17 years running. As a work truck, the Ford Ranger offers serious truck capability at affordable prices.

PickupTruck.com

Latest Rangers serve up bolder, more aggressive styling.
