Specifications

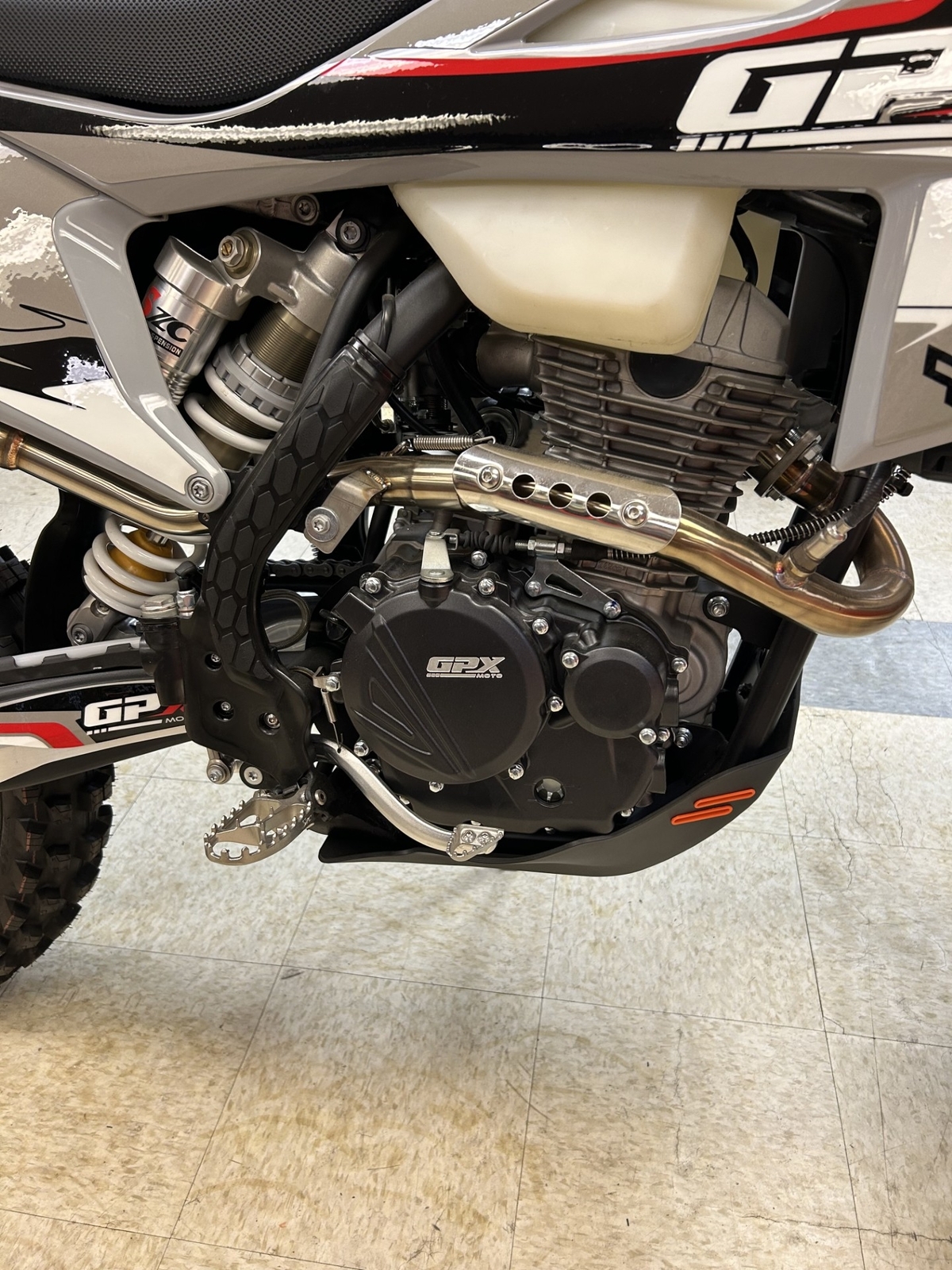

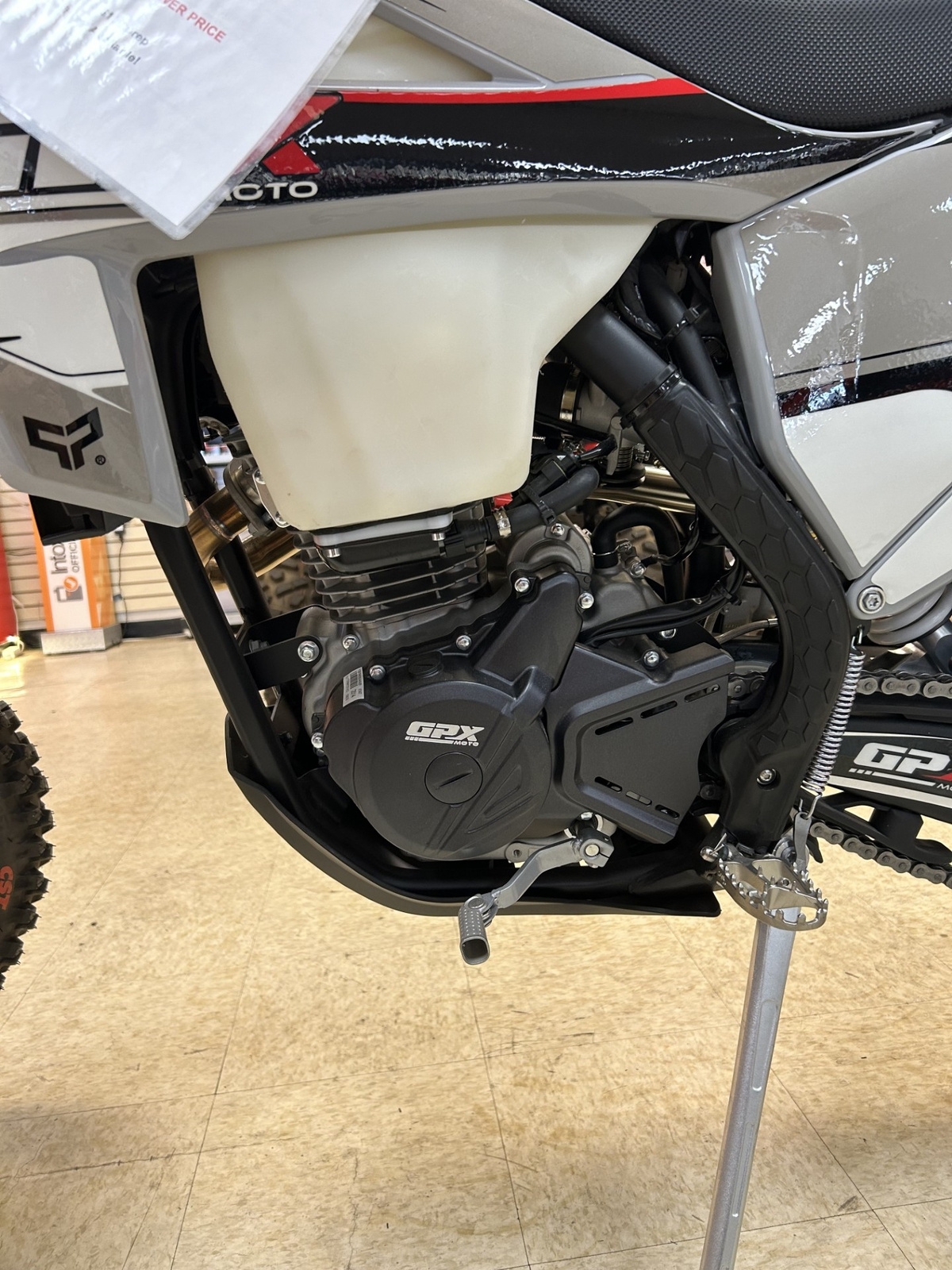

Engine Type: Four-Stroke, Single Cylinder, SOHC, 4-Valve
Cooling: Air-Cooled
Displacement: 249.4cc
Bore x Stroke: 71mm x 63mm
Compression Ratio: 9.6:1
Fuel System: Bosch EFI
Transmission: 6-Speed
Clutch: Oil Bath, Multi-Disc, Cable-Actuated
Starter: Electric
Max Power: 24hp
CHASIS
Frame Type: Chromo Steel Central-Backbone w/ Alloy Subframe

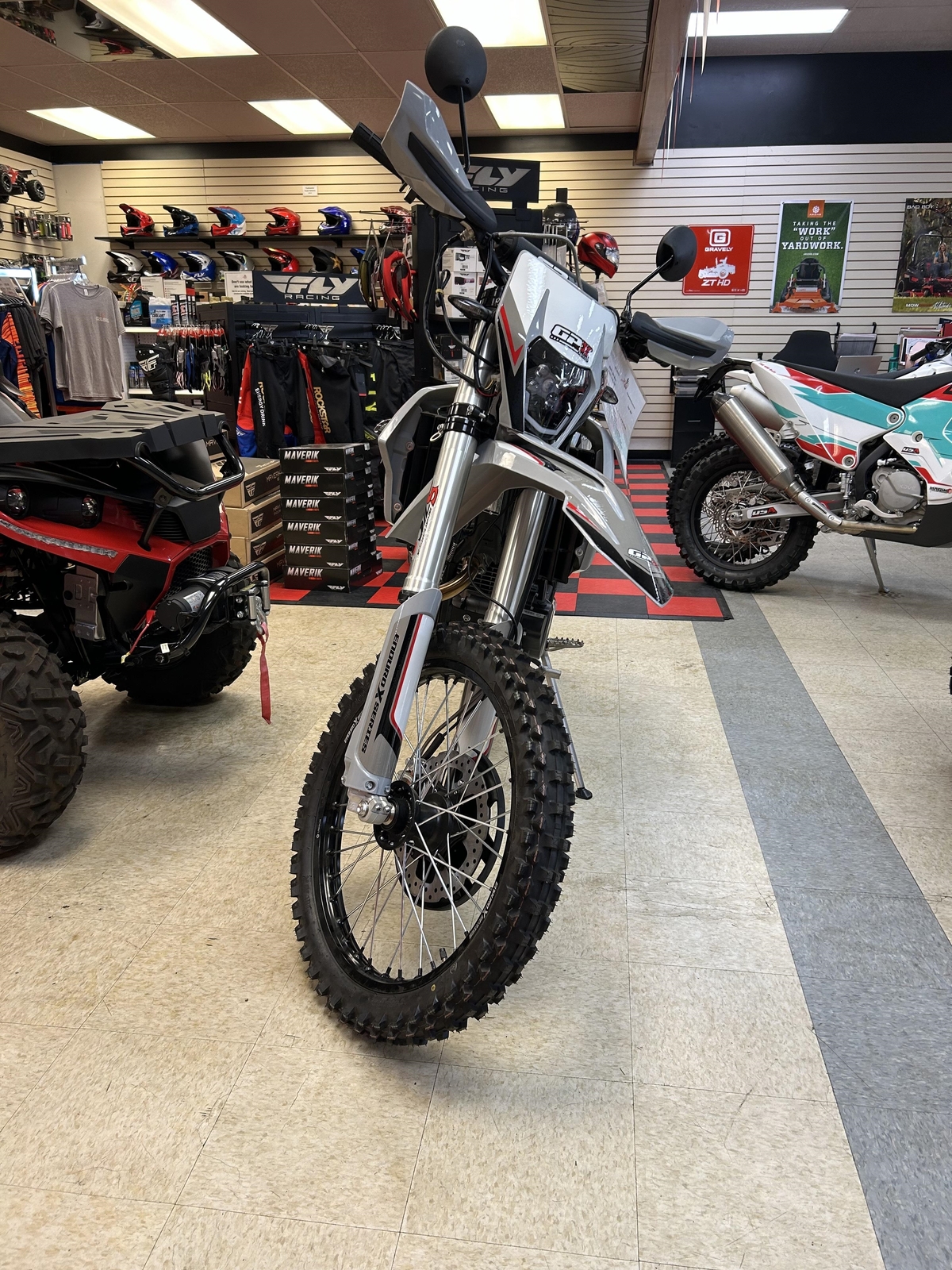

Front Suspension: 48mm Upside Fork, Adjustable Compression, Rebound, & Preload, 12.2” Travel

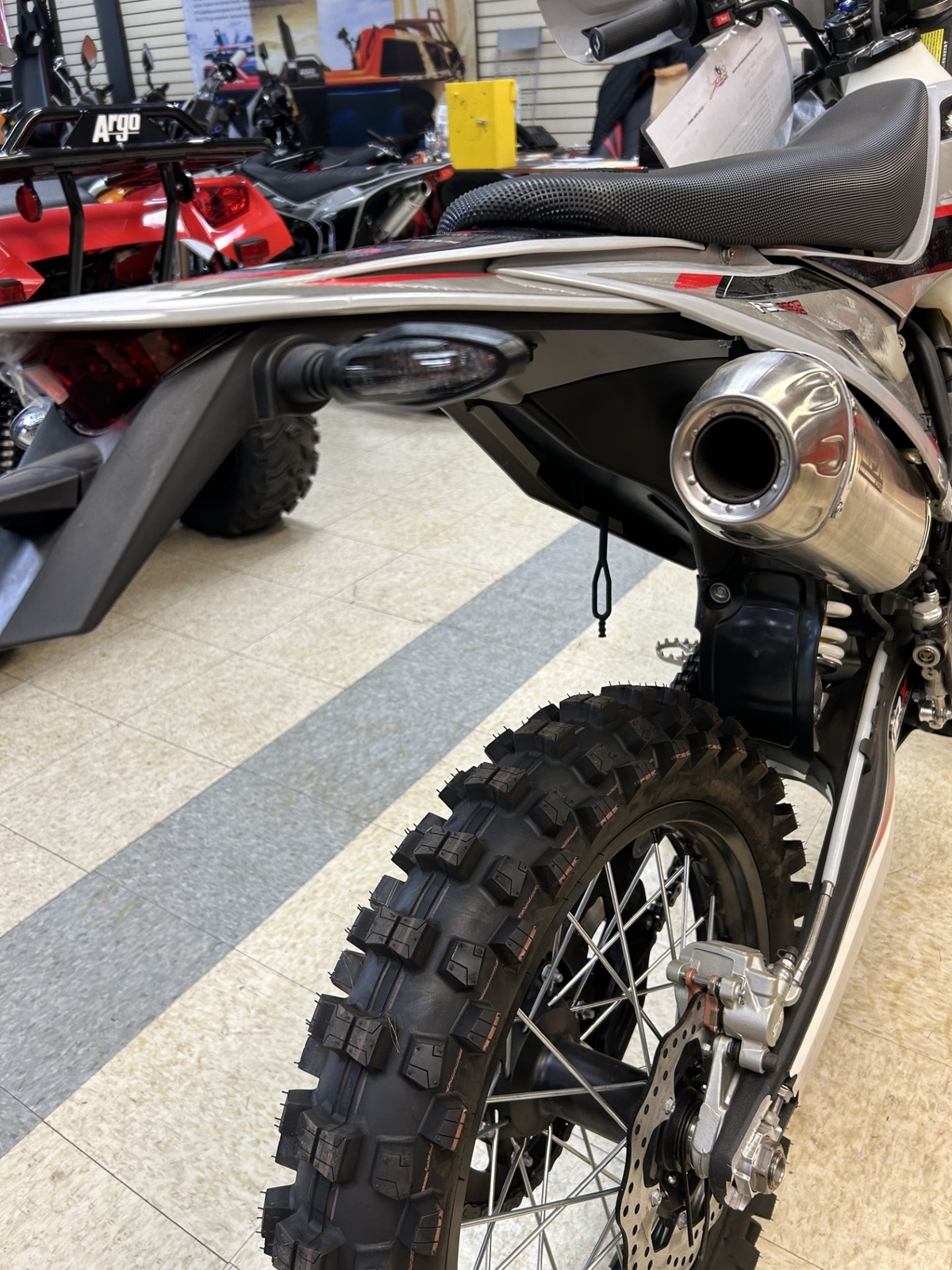

Rear Suspension: NON-LINKAGE, Piggy-Back Shock, Adjustable Rebound, High-Speed & Low-Speed Compression, & Spring Preload, 11.8” Travel

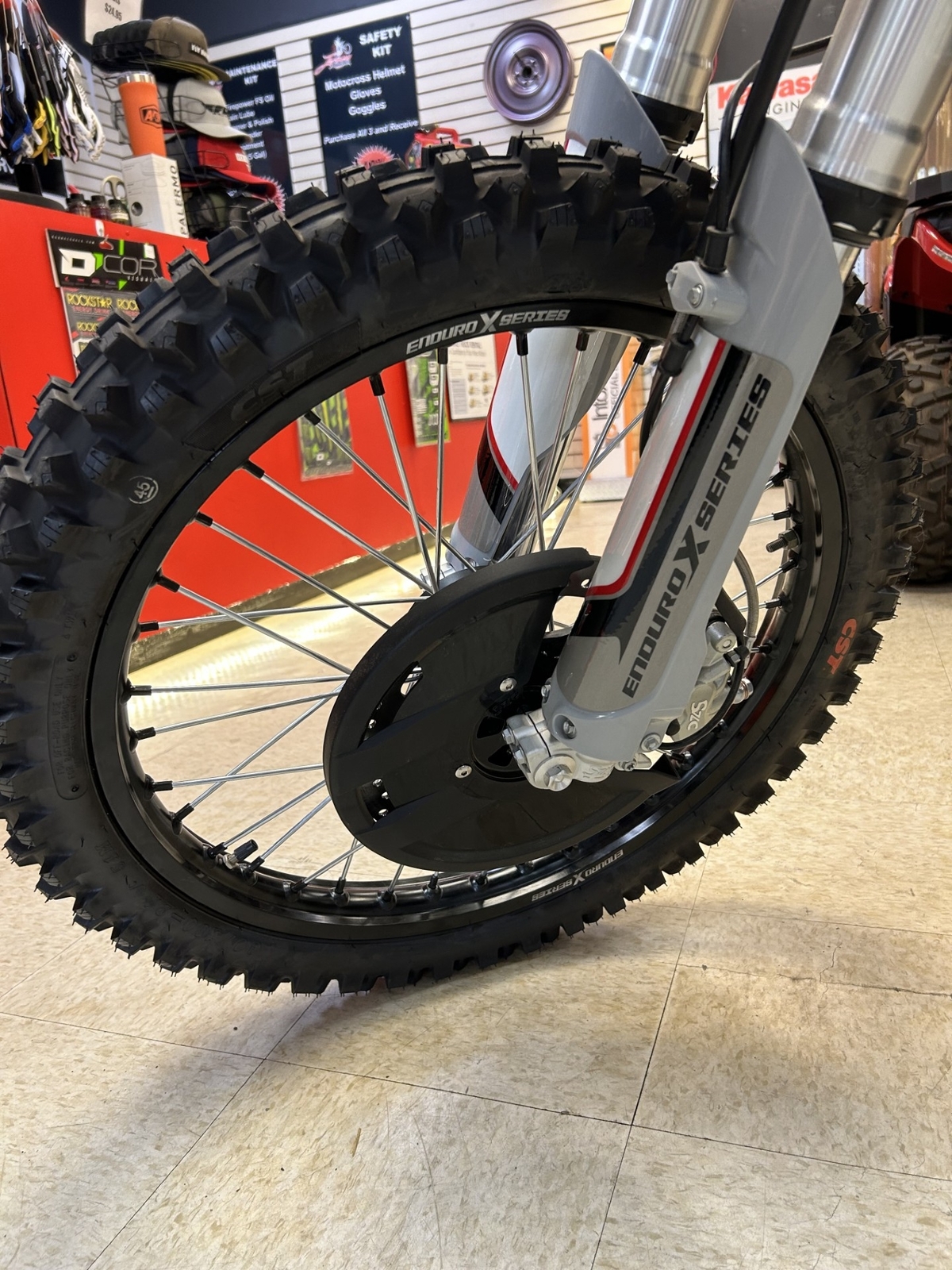

Front Wheel: 80/100-21”

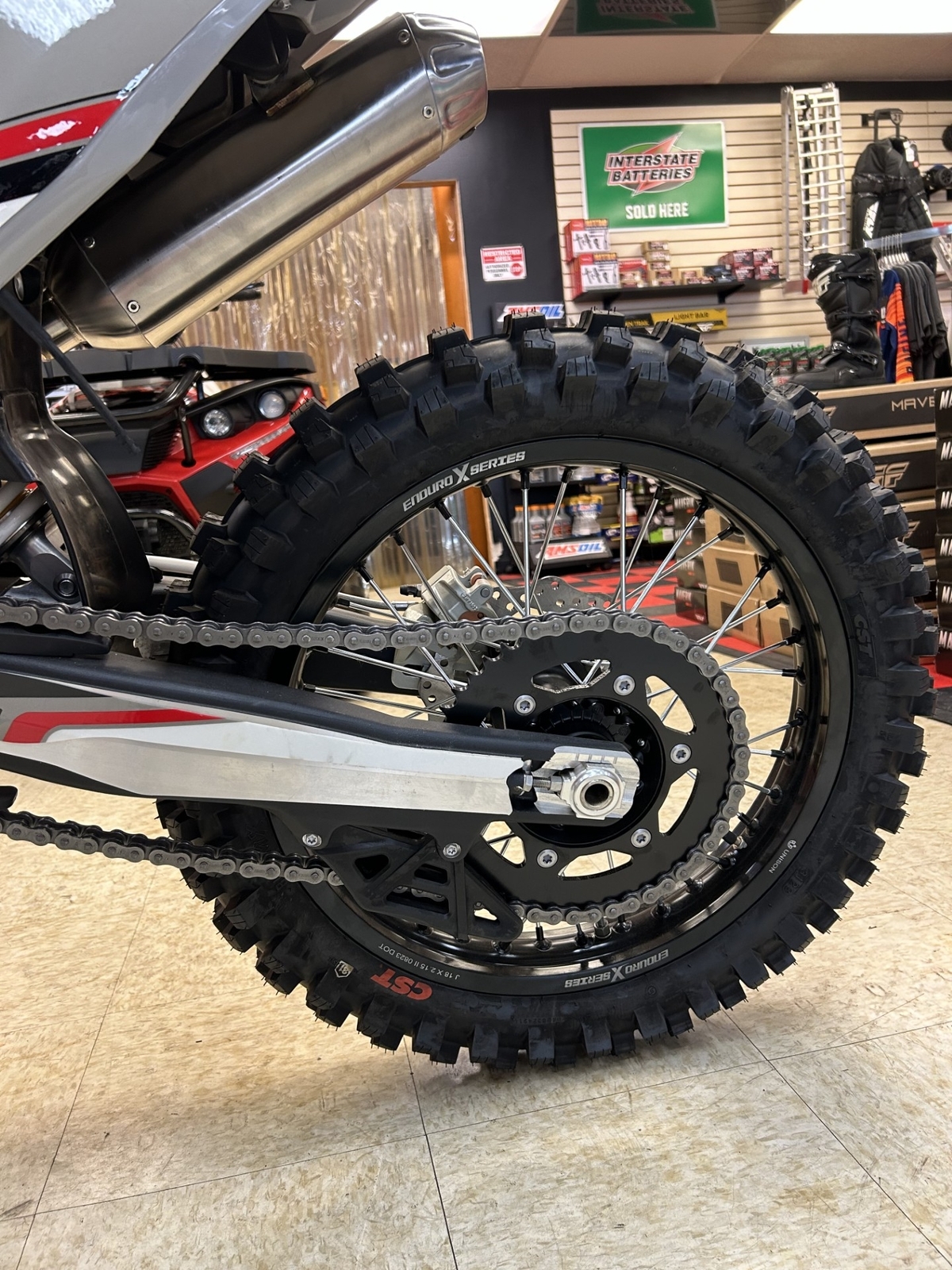

Rear Wheel: 100/90-18”
Front Brake: 260mm Disc, 2-Piston Caliper
Rear Brake: 240mm Disc, Single-Piston Caliper
Trail: 110mm
Rake Angle: 27.1 Degrees
Fuel Capacity: 2.4 Gallons
DIMENSIONS
Wheelbase: 57.7”
Seat Height: 37”
Ground Clearance: 13.8”
Dry Weight: 238.1lbs
