VW Twin Up! puts hyper efficient XL1 powertrain in a four-seater
Wed, 20 Nov 2013

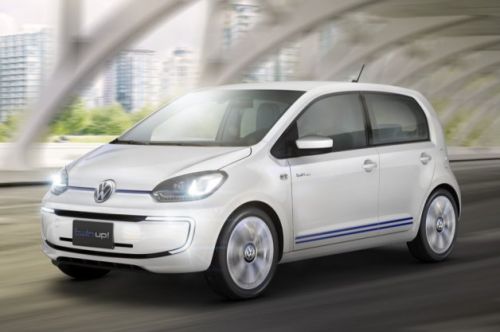

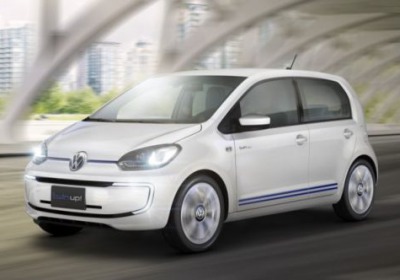

As expected, Volkswagen has taken the hyper efficient diesel-hybrid powertrain from its XL1 tandem two-seater and installed it in the Up! city car. The new Franken-hybrid is called the Twin Up! concept, and has debuted at the Tokyo Motor Show today. With the XL1's two-cylinder, 800cc diesel engine and 35kW electric motor, the tiny four-seat hatchback can achieve a remarkable 214 miles per gallon on the European cycle – not too far off the purpose-built XL1's mark of 261 mpg.
VW says swapping in the XL1's powertrain was easy, with only a 1.2-inch extension of the front overhang required to fit the diesel engine, electric motor, seven-speed DSG transmission and all of the electronics to make them work together. There's also room in the Twin Up! to carry more fuel and a larger battery cell; whereas the XL1 gets by with a tiny 2.6-gallon fuel tank and 5.5 kWh lithium-ion battery pack, the Twin Up! can carry 8.7 gallons of fuel and has an 8.6 kWh battery. The hybrid powertrain as a whole produces only 74 horsepower, but has a maximum torque rating of 159 pound-feet. With those specs, the Twin Up! can travel 31 miles on battery power alone (nearly the same as the XL1) and reach a top speed of 87 miles per hour. A trip to 62 mph takes 15.7 seconds, so future drivers will have to plan their passes accordingly.
For now just a concept, the Twin Up! is being shown in Tokyo wearing an exclusive Sparkling White paint color with blue glass flakes. The interior color is called Ceramic, and both inside and out feature accents in the company's signature blue that signals a high efficiency model. The Twin Up! also ditches the buttons and switches of its production dashboard in favor of all-digital instrumentation and controls.
You can read more about the Twin Up! in the press release below, or check out our gallery of images above.
VOLKSWAGEN SHOWS NEW TWIN UP! CONCEPT CAR AT THE TOKYO MOTOR SHOW
twin up! sets new record for a four-seat vehicle with European cycle fuel consumption of 214 mpg
- Car uses the plug-in hybrid system from the XL1
- Covers up to 31 miles in zero-emissions, electric mode
Wolfsburg / Tokyo, November 2013 - Volkswagen introduced the XL1, the world's most fuel-efficient production car, to the streets in 2013. This plug-in diesel hybrid for two people is being produced in a limited volume and has a European combined fuel consumption figure of 261 mpg as well as a carbonfiber body and chassis.
Now, Europe's largest carmaker is applying the experience it gained from this technological showpiece and is applying it to a high-volume production vehicle. Volkswagen is presenting this new car at the Tokyo Motor Show: a plug-in hybrid version of the up!, called the twin up! concept car. This four-seater shares certain parts of its drive system with the XL1-including its diesel engine, electric motor, and DSG dual-clutch automatic transmission.
Compact hybrid system. Since all new Volkswagen vehicles are configured to accept alternative drive systems as well as conventional ones, it was easy to install the compact plug-in hybrid system in the twin up!. The only modification made in the production version was to lengthen the extremely short front overhang by 1.2 inches. The twin up!'s 55 kW (75 PS) drive unit-consisting of a 35 kW (48 PS) 0.8-liter TDI Clean Diesel engine, a 35kW electric motor, a seven-speed DQ200 DSG transmission, and the power electronics-is mounted at the front of the car. Installed at the back, behind the rear seats and under the trunk, is the "fuel storage system": an 8.6 kWh lithium-ion battery, the 12-volt battery for the electrical system, and an 8.7-gallon fuel tank.
Maximum efficiency. The car attains impressive efficiency thanks to a combination of good aerodynamics (0.30 Cd), a low unladen weight of 2657 pounds, lightweight plug-in drive components, and low rolling resistance 165/65 R15 tires. In all-electric model, for example, the twin up! has a driving range of 31 miles. In the "New European Driving Cycle"-the standard testing and comparison driving cycle for plug-in hybrid vehicles in Europe-the concept car returns a sensationally low fuel consumption figure of 214 mpg, which equates to CO2 emissions of just 27 g/km.
Good driving performance. The twin up! highlights the fact that efficiency and driving fun will not be mutually exclusive in the future. In the city, in electric mode, the twin up! accelerates from 0 to 37 mph in 8.8 seconds on its way to a top speed of 78 mph. In hybrid mode, the car delivers 159 pound-feet of torque, a high number for such a small car. Out of town, the twin up! goes from 0 to 62 mpg in 15.7 seconds and reaches a top speed of 87 mph.
Plug-in hybrid concept in detail
Two-cylinder TDI. The TDI produces its peak power of 35 kW from just 830 cc. The two- cylinder TDI was derived from a common rail four-cylinder, 1.6-liter diesel engine and has a bore spacing of 88 mm, with a bore and stroke of 81.0 by 80.5 mm. The XL1's engine also shares key internal modifications for reducing emissions, which include specially formed piston recesses for multiple injection and individual orientation of the injection jets. The common-rail diesel's smooth running properties were transferred to the two-cylinder engine, aided by a balancer shaft that is driven by and turns at the same speed as the crankshaft.
An exhaust gas recirculation system, an oxidation catalytic converter, and a diesel particulate filter are used to reduce tailpipe emissions.
Hybrid module. The hybrid module is located between the TDI engine and the seven-speed DSG transmission: it consists of an electric motor and a clutch, integrated in the DSG housing in place of the usual flywheel. The electric motor is supplied with energy from the 8.6 kWh lithium-ion battery. The power electronics, which operate at 308 Volts, manage the flow of high-voltage energy between the battery and the electric motor and convert direct current to alternating current.
Order under the hood. The engine compartment of the twin up! is completely covered. All service access points are in maintenance-friendly locations. A matte black engine compartment cover with acoustic insulation organizes all the recognisable components. The power electronics, and the service access located across from it, are integrated in a high-gloss black band, which also functionally partitions the engine compartment. An aluminium- look central capsule unites design themes from the world of combustion engines and electric motors, where the electric elements are coded in the colour blue.
Interplay of drive modes. As previously noted, the electric motor can power the twin up! for distances of up to 31 miles and to a top speed of 78 mph. In electric mode, the TDI engine is decoupled from the drivetrain and is shut off. Meanwhile, the clutch on the gearbox side remains closed, and the seven-speed DSG is fully engaged. Provided that the battery is sufficiently charged, the driver can choose when and where the twin up! should be driven electrically by pressing the e-mode button. Restarting the TDI engine is a very smooth process. While driving, the electric motor's rotor is sped up and is very quickly coupled to the clutch in a process known as "pulse starting". This accelerates the diesel engine to the required speed and starts it, so the driver hardly notices the transition.
Energy and drive management. When the twin up! is braked, the electric motor operates as a generator; its braking energy is used to charge the battery under regeneration. In
certain operating conditions, the load of the TDI engine can be shifted so that it operates at its most favorable efficiency level. The gears in the DSG transmission are also always selected with the aim of minimizing energy usage.
The engine controller regulates the entire energy and drive management system based on the specific load demanded by the driver. Parameters flowing into this control system include the accelerator or e-pedal position, engine load, energy supply, and mix of kinetic and electric energy, so that the system always uses the optimal type of propulsive power.
Color & Trim
Exclusive body paint and bright interior. Volkswagen is showing the concept car in Tokyo
in "Sparkling White" paint, which changes its pattern due to the blue "glass flakes" that are mixed in. The bright and friendly interior is dominated by the "Ceramic" color; the sporty leather-fabric combination of the seats is color-coordinated, with reflective strips in their center panels. Two "corporate blue hues" that are used for the Volkswagen themes of "e- mobility" and "Think Blue." form the basis for numerous design details. For example, blue double piped lines frame the seats and blue decorative stitching is used on the multifunction steering wheel and in the trim for the shift lever. On the outside, the motif of flowing blue double stripes is repeated above the sill area.
New interface concept
Digital instrumentation. Controls and display components were redesigned for the twin
up!-user control, status display, and climate control functions on the concept car are entirely digital. It creates a futuristic ambience, with precise and prominent graphics in blue and white hues.
Intuitively accessible information. The instrument cluster of the twin up! was designed with the goal of combining the look of a precision instrument with unique digital aesthetics. The visual image and information on the instrument cluster changes according to whether the vehicle is operating in hybrid or electric mode: the needles, scaling, and ambient lighting that frames the instrument cluster change from white in hybrid mode to blue in EV driving.
User-configurable home screen. Individual menus can be called up in the central infotainment system, and they are selected by keys on the side of the display area or directly via the touchscreen. The home screen of the infotainment system can be customized; users can individually define menu items such as "Contacts", "Sideway app" (other user- configurable categories for points of interest along the route), "Energy efficiency", "Weather", "Air quality", or "Climate control".
Digital climate controls. In the twin up!, climate functions are shown exclusively in digital form for the first time in a Volkswagen. This concept follows a completely new visual approach, which exploits the capability of super-brilliant and high-resolution "AMOLED" (Active Matrix Organic LED) displays. All climate control functions are adjusted via the central touchscreen. Here, a "body-oriented" operating logic is used, which is able to adjust airflow and zonal settings for individually "perceived temperature" for the driver or passenger. The climate control then automatically adjusts the temperature and blower speed.
About Volkswagen of America, Inc.
Founded in 1955, Volkswagen of America, Inc., an operating unit of Volkswagen Group of America, Inc. (VWoA) is headquartered in Herndon, Virginia. It is a subsidiary of Volkswagen AG, headquartered in Wolfsburg, Germany. VWoA's operations in the United States include research and development, parts and vehicle processing, parts distribution centers, sales, marketing and service offices, financial service centers, and its state-of-the-art manufacturing facility in Chattanooga, Tennessee. The Volkswagen Group is one of the world's largest producers of passenger cars and Europe's largest automaker. VWoA sells the Beetle, Beetle Convertible, Eos, Golf, GTI, Jetta, Jetta SportWagen, Passat, CC, Tiguan, and Touareg vehicles through approximately 630 independent U.S. dealers.
By John Neff
