Chevy Volt 'acceptable,' Nissan Leaf 'poor' in new IIHS safety tests
Thu, Jul 31 2014
With US Nissan Leaf sales up almost 30 percent during the first half of the year, the only thing that might be able to stop the battery-electric vehicle is a good, stiff barrier. Unfortunately, thing's aren't always pretty when that happens in the real world, according to new tests from the Insurance Institute for Highway Safety (IIHS). Things with the Chevrolet Volt extended-range plug-in are a little bit rosier, though.
The two plug-in vehicles were part of a batch of a dozen vehicles that just went through the IIHS's "small overlap" test, in which the driver's side front corner of the vehicle is crashed into a rigid barrier at 40 miles per hour. Out of the dozen, only the Mini Cooper Countryman was given a "good" rating. Five vehicles, including the Volt and the Ford C-Max Hybrid, were rated "acceptable," two were "marginal" and two, including the Leaf, were "poor."
Plug-in vehicles are unique in the crash-test context because of their relatively large battery sizes. In the Volt's case, the driver had a "low risk" of injury, said the IIHS. But the Leaf's crash substantially pushed back the instrument panel and steering column, creating a scenario where the driver was "likely" to sustain leg injuries. The batteries in both the Leaf and the Volt passed safety tests specifically targeted at things like thermo and electrical properties and overall integrity.
"Nissan is proud of the Leaf's 'Good' rating in all other IIHS tests, a 4-star NCAP rating from NHTSA and its IIHS Top Safety Pick rating in all previous years since the car's release," the company said in an e-mail sent to AutoblogGreen. "As for the performance of the 2014 Leaf in the 'small overlap frontal test,' Nissan will continue to review these and other results from the IIHS 'small overlap frontal test' as we seek opportunities for improvement."
Check out the IIHS's press release and small car crash-test video footage below.
Range of ratings: Small car ratings run the gamut in challenging small overlap front test
The Mini Cooper Countryman is the only small car to earn a good rating among the latest group of 12 cars subjected to the Institute's small overlap front crash test.
Two electric models and a hybrid also are in the mix, with varied results. The electric-powered Chevrolet Volt (with a gasoline engine "range extender") earns an acceptable rating, while its battery-electric rival, the Nissan Leaf, earns a poor rating. The Ford C-Max Hybrid, a small four-door wagon, earns an acceptable rating. Another small four-door wagon, the gasoline-powered Mazda 5, is rated poor.
Five small cars, all 2014 models, earn an acceptable rating, two earn marginal and four earn poor ratings for occupant protection in a small overlap crash in the Institute's latest round of evaluations. The Institute now has evaluated 32 small cars for small overlap front crash protection. Of them, 19 earn a good or acceptable rating and 13 earn marginal or poor.
Introduced in 2012, the small overlap test replicates what happens when the front corner of a vehicle collides with another vehicle or an object such as a tree or utility pole. In the test, 25 percent of a vehicle's front end on the driver's side strikes a rigid barrier at 40 mph (see "Small overlap crashes: New consumer-test program aims for even safer vehicles," Aug. 14, 2012).
The test is more difficult than either the head-on crashes conducted by the National Highway Traffic Safety Administration or the IIHS moderate overlap test. In the small overlap test, the main structures of the vehicle's front-end crush zone are bypassed, making it hard for the vehicle to manage crash energy. The occupant compartment can collapse as a result.
"The Mini Cooper Countryman gave a solid performance," says Joe Nolan, the Institute's senior vice president for vehicle research. "The Countryman's safety cage held up reasonably well. The safety belts and airbags worked together to control the test dummy's movement, and injury measures indicate a low risk of any significant injuries in a real-world crash this severe."
The Countryman, introduced in 2011, is a larger four-door version of the two-door Mini Cooper. The small overlap rating for the Countryman doesn't apply to the two-door model, which hasn't been tested.
To earn the top rating of good, automakers need to focus on overall crash protection. That means an occupant compartment that resists intrusion, safety belts that prevent a driver from pitching too far forward and side curtain airbags that provide enough forward coverage to cushion a head at risk of hitting the dashboard or window frame or things outside the vehicle. Collapsing structures can knock front airbags and seats out of position, exacerbating the problem.
"Collapse of the occupant compartment is the downfall for four small cars in this group, including the Fiat 500L, Mazda 5, Nissan Juke and Nissan Leaf," Nolan explains. "A sturdy occupant compartment allows the restraint systems to do their job, absorbing energy and controlling occupant motion."
In the Fiat 500L, a four-door variant of the much smaller Fiat 500 coupe, intruding structure seriously compromised the driver's survival space, knocking the steering wheel back and to the right of the driver. That put the front airbag out of position so the dummy's head slid off the left side and hit the A-pillar. Although sensors in the head indicate the impact wasn't severe, contact with hard surfaces shouldn't occur. In addition, injury measures taken from the dummy indicate serious injury to the driver's left hip would be likely, and injuries to both lower legs would be possible in a real-world crash of this severity. The Fiat 500L (and 500) earns a poor rating for small overlap front crash protection.
First results for Mazda 5
The Mazda 5 shares the distinction with two other cars of being the worst-performing models the Institute has evaluated in the small overlap test. The other two are the 2014 Kia Forte, a small car, and the 2012 Prius v, a midsize hybrid.
"When we tested the Mazda 5 we saw a host of structural and restraint system problems. Parts of the occupant compartment essentially buckled, allowing way too much intrusion," Nolan says.
Injury measures taken from the dummy indicate a high risk of injuries to the left thigh and left lower leg in a real-world crash this severe. The steering wheel moved to the right, and the dummy's head barely contacted the front airbag before sliding off the left side. The safety belt allowed the dummy's head and torso to move too far forward, so the head made contact with the left side of the dashboard. The side curtain airbag didn't deploy at all, exposing the head to contacts with side structure and outside objects. Plus, the driver door unlatched during the test, something that shouldn't happen and puts occupants at risk of being ejected from the vehicle.
The Mazda 5 also is distinct in that it is the only vehicle in this group to earn a marginal rating in one of the Institute's other four evaluations - moderate overlap front, side, rollover and rear. The Mazda 5 earns a marginal rating in the side impact test. That also makes it the only 2014-model car the Institute has evaluated to earn anything less than acceptable in the side test. Most models earn a good rating. Measures taken from the driver dummy indicate a likely pelvis fracture, and measures taken from the dummy seated in the rear passenger seat indicate that rib fractures and/or other internal organ injuries would be possible in a crash of this severity.
This is the first time the Institute has published ratings for the Mazda 5 in the full battery of tests. The small wagon struggled in the small overlap front and side tests. The Mazda 5 is the only 2014 model car evaluated to earn anything less than acceptable in the side test. The Institute has been evaluating models for side impact protection since 2003.
Volt and Leaf electrics
Back in 2011, the Volt and Leaf were the first mainstream plug-in electric models to undergo IIHS crash test evaluations. The 2011 models earned top ratings in the moderate overlap front, side, head restraint and roof-strength evaluations (see "Safety now comes in green: 1st crash tests of electric cars," April 26, 2011). That's still the case with the 2014 versions of both cars.
"Electric vehicles have a unique challenge in the small overlap test because of their heavy batteries. The Volt performed reasonably well, earning an acceptable rating, while the Leaf struggled," Nolan says.
Driver space in the Volt was maintained reasonably well in the test, and injury measures taken from the dummy indicate a low risk of any significant injuries to a person in a similar crash. In the Leaf, the dummy had a different experience. The Leaf chalked up as much as 16 inches of intrusion in the lower occupant compartment and 14 inches in the upper occupant compartment. The instrument panel, parking brake pedal and steering column were all pushed back toward the driver. Injuries to the left knee and left lower leg would be likely in a crash of this severity, and injuries to the left thigh would be possible.
Award winners
The Volt, which has a basic-rated optional forward collision warning system, is the only car in this test group to earn a 2014 TOP SAFETY PICK+ award. The C-Max Hybrid, Countryman, Mitsubishi Lancer, and the Scion FR-S and its twin the Subaru BRZ qualify for TOP SAFETY PICK, the Institute's second-highest award. These models miss the "plus" award because they don't have an available front crash prevention system.
To qualify for TOP SAFETY PICK+, a vehicle must earn a good or acceptable rating for small overlap protection, a good rating in the Institute's other four tests, and a basic, advanced or superior rating for front crash prevention. To qualify for TOP SAFETY PICK, a vehicle must earn a good or acceptable rating for small overlap protection and a good rating in the other four tests.
"Consumers in the market for a small car now have six models to consider on our list of 2014 TOP SAFETY PICK+ award winners, and an additional 13 that earn TOP SAFETY PICK," Nolan says. "Consumers trading the inherent safety of a larger vehicle for the convenience or fuel economy of a small car should focus their search on these vehicles with state-of-the-art safety designs."
Performance and protocol
Two eco-friendly models illustrate how performance can vary in the small overlap test. Driver space in the Volt was maintained reasonably well, and data taken from the dummy indicate a low risk of significant injuries. The Volt is rated acceptable. The story's different for the Leaf. Significant intrusion left little survival space for the dummy, meaning likely knee and leg injuries. The Leaf is rated poor. The Volt has an optional forward collision warning system and qualifies for TOP SAFETY PICK+.
Chevrolet Volt
Nissan Leaf
When testing hybrid or electric models, IIHS follows special safety protocols. Post crash, technicians check for high voltage and high temperature, which could lead to a potentially fatal electrical shock and/or fire. No one can touch the car until given the all-clear. Technicians wear safety gear, including eye protection, rubber boots and rubber gloves. They're tethered at the waist to a long pole, which can be used to pull them away from the vehicle in an emergency. No issues with the batteries or electric systems were seen in the Volt and Leaf tests.
The Mini Cooper Countryman is the only small car to earn a good rating among the latest group of 12 cars subjected to the Institute's small overlap front crash test.
Two electric models and a hybrid also are in the mix, with varied results. The electric-powered Chevrolet Volt (with a gasoline engine "range extender") earns an acceptable rating, while its battery-electric rival, the Nissan Leaf, earns a poor rating. The Ford C-Max Hybrid, a small four-door wagon, earns an acceptable rating. Another small four-door wagon, the gasoline-powered Mazda 5, is rated poor.
Five small cars, all 2014 models, earn an acceptable rating, two earn marginal and four earn poor ratings for occupant protection in a small overlap crash in the Institute's latest round of evaluations. The Institute now has evaluated 32 small cars for small overlap front crash protection. Of them, 19 earn a good or acceptable rating and 13 earn marginal or poor.
Introduced in 2012, the small overlap test replicates what happens when the front corner of a vehicle collides with another vehicle or an object such as a tree or utility pole. In the test, 25 percent of a vehicle's front end on the driver's side strikes a rigid barrier at 40 mph (see "Small overlap crashes: New consumer-test program aims for even safer vehicles," Aug. 14, 2012).
The test is more difficult than either the head-on crashes conducted by the National Highway Traffic Safety Administration or the IIHS moderate overlap test. In the small overlap test, the main structures of the vehicle's front-end crush zone are bypassed, making it hard for the vehicle to manage crash energy. The occupant compartment can collapse as a result.
"The Mini Cooper Countryman gave a solid performance," says Joe Nolan, the Institute's senior vice president for vehicle research. "The Countryman's safety cage held up reasonably well. The safety belts and airbags worked together to control the test dummy's movement, and injury measures indicate a low risk of any significant injuries in a real-world crash this severe."
The Countryman, introduced in 2011, is a larger four-door version of the two-door Mini Cooper. The small overlap rating for the Countryman doesn't apply to the two-door model, which hasn't been tested.
To earn the top rating of good, automakers need to focus on overall crash protection. That means an occupant compartment that resists intrusion, safety belts that prevent a driver from pitching too far forward and side curtain airbags that provide enough forward coverage to cushion a head at risk of hitting the dashboard or window frame or things outside the vehicle. Collapsing structures can knock front airbags and seats out of position, exacerbating the problem.
"Collapse of the occupant compartment is the downfall for four small cars in this group, including the Fiat 500L, Mazda 5, Nissan Juke and Nissan Leaf," Nolan explains. "A sturdy occupant compartment allows the restraint systems to do their job, absorbing energy and controlling occupant motion."
In the Fiat 500L, a four-door variant of the much smaller Fiat 500 coupe, intruding structure seriously compromised the driver's survival space, knocking the steering wheel back and to the right of the driver. That put the front airbag out of position so the dummy's head slid off the left side and hit the A-pillar. Although sensors in the head indicate the impact wasn't severe, contact with hard surfaces shouldn't occur. In addition, injury measures taken from the dummy indicate serious injury to the driver's left hip would be likely, and injuries to both lower legs would be possible in a real-world crash of this severity. The Fiat 500L (and 500) earns a poor rating for small overlap front crash protection.
First results for Mazda 5
The Mazda 5 shares the distinction with two other cars of being the worst-performing models the Institute has evaluated in the small overlap test. The other two are the 2014 Kia Forte, a small car, and the 2012 Prius v, a midsize hybrid.
"When we tested the Mazda 5 we saw a host of structural and restraint system problems. Parts of the occupant compartment essentially buckled, allowing way too much intrusion," Nolan says.
Injury measures taken from the dummy indicate a high risk of injuries to the left thigh and left lower leg in a real-world crash this severe. The steering wheel moved to the right, and the dummy's head barely contacted the front airbag before sliding off the left side. The safety belt allowed the dummy's head and torso to move too far forward, so the head made contact with the left side of the dashboard. The side curtain airbag didn't deploy at all, exposing the head to contacts with side structure and outside objects. Plus, the driver door unlatched during the test, something that shouldn't happen and puts occupants at risk of being ejected from the vehicle.
The Mazda 5 also is distinct in that it is the only vehicle in this group to earn a marginal rating in one of the Institute's other four evaluations - moderate overlap front, side, rollover and rear. The Mazda 5 earns a marginal rating in the side impact test. That also makes it the only 2014-model car the Institute has evaluated to earn anything less than acceptable in the side test. Most models earn a good rating. Measures taken from the driver dummy indicate a likely pelvis fracture, and measures taken from the dummy seated in the rear passenger seat indicate that rib fractures and/or other internal organ injuries would be possible in a crash of this severity.
This is the first time the Institute has published ratings for the Mazda 5 in the full battery of tests. The small wagon struggled in the small overlap front and side tests. The Mazda 5 is the only 2014 model car evaluated to earn anything less than acceptable in the side test. The Institute has been evaluating models for side impact protection since 2003.
Volt and Leaf electrics
Back in 2011, the Volt and Leaf were the first mainstream plug-in electric models to undergo IIHS crash test evaluations. The 2011 models earned top ratings in the moderate overlap front, side, head restraint and roof-strength evaluations (see "Safety now comes in green: 1st crash tests of electric cars," April 26, 2011). That's still the case with the 2014 versions of both cars.
"Electric vehicles have a unique challenge in the small overlap test because of their heavy batteries. The Volt performed reasonably well, earning an acceptable rating, while the Leaf struggled," Nolan says.
Driver space in the Volt was maintained reasonably well in the test, and injury measures taken from the dummy indicate a low risk of any significant injuries to a person in a similar crash. In the Leaf, the dummy had a different experience. The Leaf chalked up as much as 16 inches of intrusion in the lower occupant compartment and 14 inches in the upper occupant compartment. The instrument panel, parking brake pedal and steering column were all pushed back toward the driver. Injuries to the left knee and left lower leg would be likely in a crash of this severity, and injuries to the left thigh would be possible.
Award winners
The Volt, which has a basic-rated optional forward collision warning system, is the only car in this test group to earn a 2014 TOP SAFETY PICK+ award. The C-Max Hybrid, Countryman, Mitsubishi Lancer, and the Scion FR-S and its twin the Subaru BRZ qualify for TOP SAFETY PICK, the Institute's second-highest award. These models miss the "plus" award because they don't have an available front crash prevention system.
To qualify for TOP SAFETY PICK+, a vehicle must earn a good or acceptable rating for small overlap protection, a good rating in the Institute's other four tests, and a basic, advanced or superior rating for front crash prevention. To qualify for TOP SAFETY PICK, a vehicle must earn a good or acceptable rating for small overlap protection and a good rating in the other four tests.
"Consumers in the market for a small car now have six models to consider on our list of 2014 TOP SAFETY PICK+ award winners, and an additional 13 that earn TOP SAFETY PICK," Nolan says. "Consumers trading the inherent safety of a larger vehicle for the convenience or fuel economy of a small car should focus their search on these vehicles with state-of-the-art safety designs."
Performance and protocol
Two eco-friendly models illustrate how performance can vary in the small overlap test. Driver space in the Volt was maintained reasonably well, and data taken from the dummy indicate a low risk of significant injuries. The Volt is rated acceptable. The story's different for the Leaf. Significant intrusion left little survival space for the dummy, meaning likely knee and leg injuries. The Leaf is rated poor. The Volt has an optional forward collision warning system and qualifies for TOP SAFETY PICK+.
Chevrolet Volt

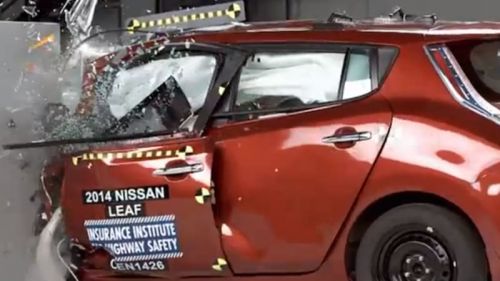

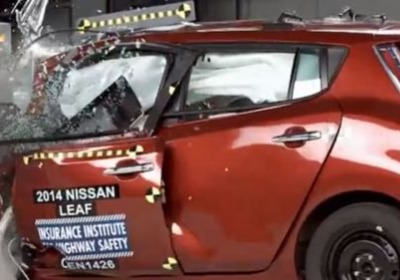

Nissan Leaf
When testing hybrid or electric models, IIHS follows special safety protocols. Post crash, technicians check for high voltage and high temperature, which could lead to a potentially fatal electrical shock and/or fire. No one can touch the car until given the all-clear. Technicians wear safety gear, including eye protection, rubber boots and rubber gloves. They're tethered at the waist to a long pole, which can be used to pull them away from the vehicle in an emergency. No issues with the batteries or electric systems were seen in the Volt and Leaf tests.
