Audi says new 48 volt micro-hybrid system improves fuel economy, paves way for electrification
Mon, Aug 25 2014
Audi is testing a supplemental 48-volt electric system in two prototype vehicles – modified mild-hybrid versions of the A6 TDI and the RS 5 TDI – in order to add in more electric technology (an electric compressor, for example, to improve acceleration) and "convenience systems for dynamic chassis control." Audi says it has more applications in the pipeline, but the overall gist is that the German automaker sees 48 volts as an "important building block in electrification strategy."If used in a car that gets 40 mpg, that would translate to around 43.5 mpg.

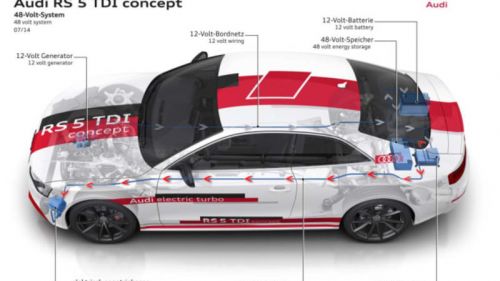

As you can see in the picture above (click to enlarge), the RS 5 TDI concept uses a li-ion battery installed in the back of the car and an alternator to provide 48 volts when the engine is off. Audi says that the 48-volt system can save up to 0.4 liters of fuel per 100 kilometers. To put that into US numbers, if used in a car that gets 40 miles per gallon today, that would translate into a bump up to around 43.5 mpg.
The Advanced Lead Acid Battery Consortium (ALABC) is also working on a 48-volt system to improve fuel economy and we've got a deep dive of Audi's electric turbocharger here.
Even more powerful and efficient – the new 48-volt technology from Audi
Important building block in electrification strategy
More voltage and more power for new technologies
Scalable platform concept suitable for wide-ranging uses
Ingolstadt, August 25, 2014 – Audi is to upgrade part of its vehicle electrical system from twelve to 48 volts. The move represents another technical building block for facilitating the integration of new automotive technologies while increasing the power and efficiency of its cars.
"We are using the full bandwidth of electrification in our drive principles strategy. Running part of the vehicle electrical system at 48 volts plays a central role in this," commented Prof. Dr. Ulrich Hackenberg, Member of the Board of Management for Technical Development at Audi. "It enables us to make more energy available. That paves the way for new technologies with which we can make our cars more sporty, more efficient and more convenient to use."
Audi recently showcased the scope of the 48-volt electrical system with the technology demonstrators Audi A6 TDI concept and RS 5 TDI concept. Both models are fitted with an electrically powered compressor. This operates independently of the engine load and therefore fundamentally improves the acceleration performance. 48-volt technology is moreover ideal for realizing convenience systems for dynamic chassis control. Audi will shortly be unveiling a variety of applications in this field.
The current state of the art technology has taken 12-volt electrical systems to their very limits. Especially at low temperatures, all the various static-load consumers can account for the entire power generated by the alternator, which can deliver up to three kilowatts. The battery power is no longer capable of meeting the demands of new, dynamic-load consumers such as high-performance electric compressors.
The solution is a second subsidiary electrical system running at 48 volts, to complement the 12-volt power supply. The higher voltage means smaller cable cross-sections are needed; this translates into lighter cable harnesses with lower power dissipation. The 48-volt electrical system features new storage technologies and delivers much more power than the 12-volt system with lead batteries. That makes it an important element of the Audi strategy of electrifying various stages of the drivetrain. The Group's developers have already come up with a scalable platform concept, including a version that incorporates the electrically powered compressor.
In currently the highest development version, a compact lithium-ion battery supplies 48 volts as the energy source during engine-off phases; a DC/DC converter integrates the 12-volt electrical system. The lithium-ion battery operates in conjunction with a new, efficiency-optimized alternator that qualifies the drivetrain as a mild hybrid. Within this concept there are diverse ways of starting, controlling and deactivating the combustion engine as needed. The powerful alternator achieves an energy recovery output of ten kilowatts, far more than is possible at present. That adds up to a saving of up to ten grams of CO2 per kilometer (16.1 g/mi), equivalent to around 0.4 liters of fuel per 100 kilometers (62.1 miles).
*The collective fuel consumption of all models named above and available on the German market can be found in the list provided at the end of this MediaInfo.
Important building block in electrification strategy
More voltage and more power for new technologies
Scalable platform concept suitable for wide-ranging uses
Ingolstadt, August 25, 2014 – Audi is to upgrade part of its vehicle electrical system from twelve to 48 volts. The move represents another technical building block for facilitating the integration of new automotive technologies while increasing the power and efficiency of its cars.
"We are using the full bandwidth of electrification in our drive principles strategy. Running part of the vehicle electrical system at 48 volts plays a central role in this," commented Prof. Dr. Ulrich Hackenberg, Member of the Board of Management for Technical Development at Audi. "It enables us to make more energy available. That paves the way for new technologies with which we can make our cars more sporty, more efficient and more convenient to use."
Audi recently showcased the scope of the 48-volt electrical system with the technology demonstrators Audi A6 TDI concept and RS 5 TDI concept. Both models are fitted with an electrically powered compressor. This operates independently of the engine load and therefore fundamentally improves the acceleration performance. 48-volt technology is moreover ideal for realizing convenience systems for dynamic chassis control. Audi will shortly be unveiling a variety of applications in this field.
The current state of the art technology has taken 12-volt electrical systems to their very limits. Especially at low temperatures, all the various static-load consumers can account for the entire power generated by the alternator, which can deliver up to three kilowatts. The battery power is no longer capable of meeting the demands of new, dynamic-load consumers such as high-performance electric compressors.
The solution is a second subsidiary electrical system running at 48 volts, to complement the 12-volt power supply. The higher voltage means smaller cable cross-sections are needed; this translates into lighter cable harnesses with lower power dissipation. The 48-volt electrical system features new storage technologies and delivers much more power than the 12-volt system with lead batteries. That makes it an important element of the Audi strategy of electrifying various stages of the drivetrain. The Group's developers have already come up with a scalable platform concept, including a version that incorporates the electrically powered compressor.
In currently the highest development version, a compact lithium-ion battery supplies 48 volts as the energy source during engine-off phases; a DC/DC converter integrates the 12-volt electrical system. The lithium-ion battery operates in conjunction with a new, efficiency-optimized alternator that qualifies the drivetrain as a mild hybrid. Within this concept there are diverse ways of starting, controlling and deactivating the combustion engine as needed. The powerful alternator achieves an energy recovery output of ten kilowatts, far more than is possible at present. That adds up to a saving of up to ten grams of CO2 per kilometer (16.1 g/mi), equivalent to around 0.4 liters of fuel per 100 kilometers (62.1 miles).
*The collective fuel consumption of all models named above and available on the German market can be found in the list provided at the end of this MediaInfo.
By Sebastian Blanco
