Fj40 : Custom Expedition Vehicle : One Of A Kind, Frame-off Build on 2040-cars

 This FJ40 is the result of a "no limits" one of a kind custom build completed in our shop. Aside from the vintage frame, VIN and title the whole vehicle has been built with new parts from the ground up. It has been driven approximately 500 miles for road testing and fine-tuning to make sure it is 100% reliable.
The body consists of an aircraft aluminum tub made by Aqualu, the tailgate and doors are also aqualu units. The body has been professionally painted in Arctic white PPG BC/CC. Frame, roll cage and suspension are powder coated for durability and long lasting good looks.

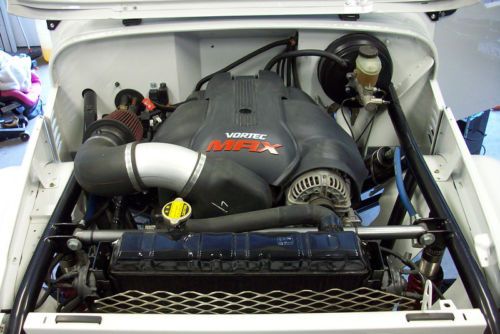

Power comes from a 2007 Chevy 5.3 HO all aluminum engine making over 330hp backed by a 4L65E transmission and Atlas II transfer case. Exhaust features a high temperature ceramic coating and a polished stainless muffler. The custom aluminum center console houses an Art Carr gate shifter and twin sticks for the Atlas as well as controls for the ARB front locker and on-board air compressor. The impressive roll cage is tied into the shock towers, rocker guards, and front hoop and the frame has been fully boxed for strength.
Proffitt's cruisers built a custom toyota based front axle using mini truck knuckles, longfield's high strength axle joints,an ARB air locker and heat treated axles turned by billet high-steer arms.
Front suspension is a custom radius arm setup using high strength ballistic joints and poly bushings. The front-end is controlled by a saginaw power steering conversion and 12" travel Bilstein remote reservoir shocks with dual rate coil springs.
In the rear a custom axle was made using a high-pinion Dana 60 with reverse-cut 4.10 gears and a 35 spline detroit locker. a triangulated 4-link was employed with high strength spherical rod ends and a tubular axle gusset / mount. 14" travel remote reservoir coil-overs were used in the rear with a custom enclosed shock tower. Stopping power is more than adequate with 4-wheel power disc brakes: Toyota 4-piston calipers up front and GM single piston calipers in the rear with integral parking brake.

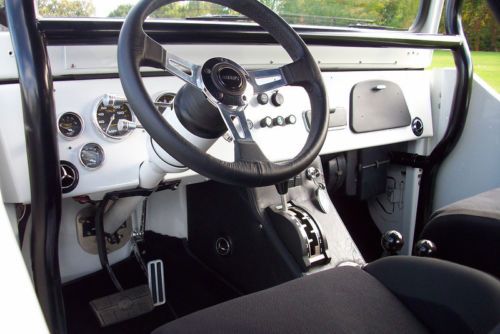

Inside the cabin the engine is monitored by a full array of Autometer gauges. Heat and ice cold air conditioning are provided by a custom under-dash setup. The console is wrapped in black leather. Cobra racing seats are installed on a tubular mount, and an optima redtop battery powers the electricals from under the driver seat.

Although this is a fully functional off-road vehicle, the build quality is stunning. Body, paint, interior and overall fit & finish are second to none. This FJ40 was built in our full service restoration / custom shop. If you are interested in this vehicle and would like some modifications or add-ons we will be happy to accommodate you. Check us out at Auto Motion Classics Dot com       518-852-2858
