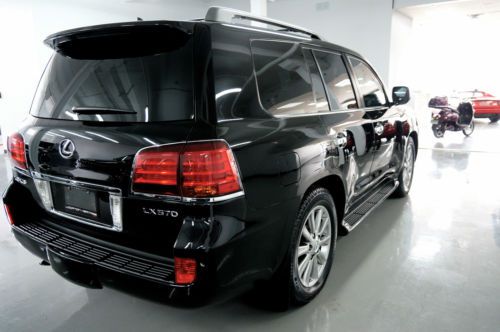

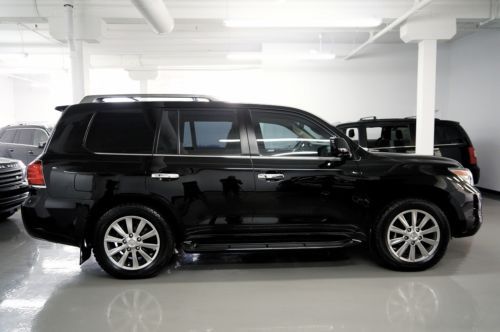

You are bidding on a 2010 Armored Lexus Lx570. Vehicle is in pristine condition and Canada driven. Owned by a local VIP. Vehicle mileage is in KM.

bidding is for vehicle FOB Montreal Canada. Worldwide shipping can be arranged at additional cost.

1. Armor Conversion Modifications / Alterations

-Vehicle armored using ballistics material to defeat the following in non transparent areas

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-All four (4) doors armored using ballistics material to defeat the following in non transparent areas

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Windshield replaced with transparent armor to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Transparent armor for doors is 40 mm thick to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Front and Rear of vehicle armored using ballistics material to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Entire roof area will be armored using ballistics material to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Floor armored using 5 mm Mild Steel that acts as an absorbent for blast.

-All pillar posts, firewall, cargo area, and rear wheel arches will all be armored using ballistics material to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Overlap System around each window will be used throughout the vehicle to ensure complete protection armored using ballistics material to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Battery and computer armored using ballistics material to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Run-Flats installed in all tires with one spare

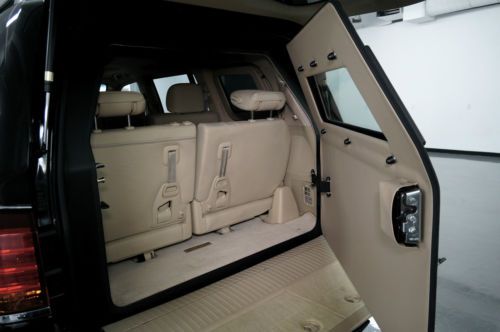

-Rear door kept original with armored swing door directly behind original.  Swing door will have transparent armor for full viewing capacity.  The thickness of the transparent armor is 40 mm+/-.  The door will be armored using ballistics material to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)

-Rear cargo side panels to have 12” X 8” transparent armor inserts to be 40 mm thick to defeat the following

B6 - 7.62 x 51mm (European Ballistic Standards EN1063)



2. Glass

-Troy Armoring uses a combination of glass, polycarbonate and Mylar that are bonded together using the latest technology. This process creates one of the finest transparent armors available on the market.

-OE style curved ballistic glass (wind screen, passenger doors), providing the level of protection as mentioned in Section 1 of the present agreement

-Concealed ballistic flat glass modules installed in rear quarter panels and rear bulkhead, providing the level of protection as mentioned in Section 1 of the present agreement

-Anti-spall layer on all glass

-No distortion, no delamination



3. Interior

-Original interior panels shall be modified as necessary, and reinstalled wherever design permits,  to maintain vehicle’s original appearance

-Overlaps, windshield frame, rear bulkhead shall be re-upholstered using the highest quality materials and craftsmanship, matching OEM colors and quality as close as possible.

-OEM air conditioning and heater vents shall remain operable, Original interior panels shall be modified as necessary, and reinstalled wherever design permits,  to maintain vehicle’s original appearance

-Overlaps, windshield frame, rear bulkhead shall be re-upholstered using the highest quality materials and craftsmanship, matching OEM colors and quality as close as possible.

-OEM air conditioning and heater vents shall remain operable,



4. Doors

-          Troy Armoring creates out of Ballistic steal Armor overlaps at all doors to prevent the penetration through door posts and pillars.

-          The door pillars are reinforced to accommodate and withstand the additional weight of the armored door.

-          Heavy Duty door hinges replace the original ones. Designed and manufactured by Troy Armoring they help prevent the doors from sagging and the deformation of the door pillars.

-          Heavy Duty door travel retainers



5. Electrical

Troy Armoring runs a thorough test of all electrical equipment that is standard to the vehicle and proceeds with modifications if necessary for it to be compatible with the armoring process.

Any additional (optional) electric equipment installed on the vehicle by Troy Armoring shall be individually fused; all wires are loomed and clearly marked, as required by vehicle safety standards





6. Ballistic Protection Level Details





 7. Standard Security Features and Accessories

·         Suspension reinforced as necessary to support the weight of the armor.

·         Hutchinson runflat devices

·         Operable driver’s window (4” opening)

·         Tinted Glass on all doors and rear quarters

·         Tailpipe Protection Screen

·         Perimeter armoring of passenger compartment (roof and vertical surfaces: glass, firewall, doors, pillars, quarter panels, ballistic overlaps, rear bulkhead, etc.) to provide protection against 7.62mm, 308 Winchester FMJ ammunition, in accordance with NIJ Standard 0108.01 Level 3 and/or CEN 1063 Level B6

·         Floor of the vehicle is armored to withstand the blast and shrapnel from detonation of 2 x DM51 grenades exploded simultaneously.

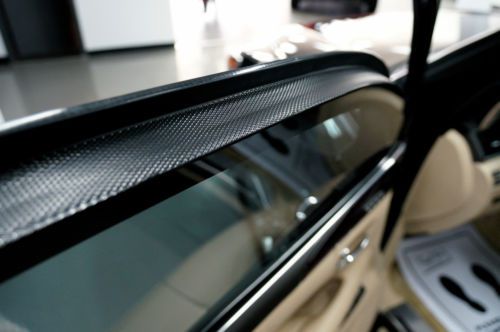

·         All window/door apertures shall be overlapped, with bullet catchers in the door window area.

·         Vehicle Battery and Electronic Module protection

·         Fuel tank protection

·         Passenger door hinges mounting points shall be reinforced to prevent the door sagging and deformation of the door pillars.

·         Door travel retainers.

·         The materials used in the construction of the vehicle shall of the highest quality, and shall be tested in accordance with the ballistic protection levels specified.

·         All manuals and written information provided by vehicle manufacturer is included with the vehicle.
