1995 Chevrolet C3500 Custom 980 Hp Cummins 12v Engine. on 2040-cars

Year:1995 Mileage:2000
Location:

Cloverdale, California, United States

Cloverdale, California, United States
Advertising:

Over $150,000 invested on this project to date.

We own a hot rod shop in Northern California called West Coast Auto Craft. Check us out on youtube or go to our site westcoastautocraft dot com.

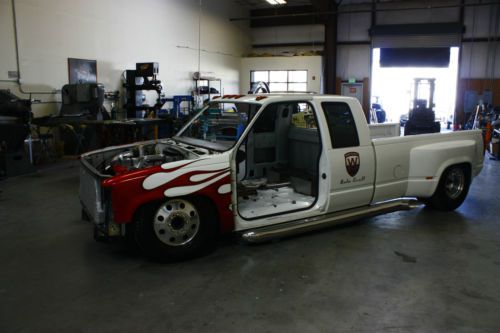

This is a truck we are building as a shop truck. We have gone a different direction and this is a great opportunity for someone looking for a bad to the bone cummins powered dually. The 1995 chevy 3500 dually I started with was an immaculate clean titled truck. It is designed to be a show, strip, and tow truck (we have a 53' trailer) Everything listed below is BRAND NEW and either mounted on the truck or in its original box. The truck has been all mocked up and is ready to be broke down and have everything painted and or powder coated, and then reassembled. Everything is here to finish. This is a great opportunity to steal a one of a kind truck at a fraction of what I am into it. If you want we could eve finish it for you turn key.


Chassis

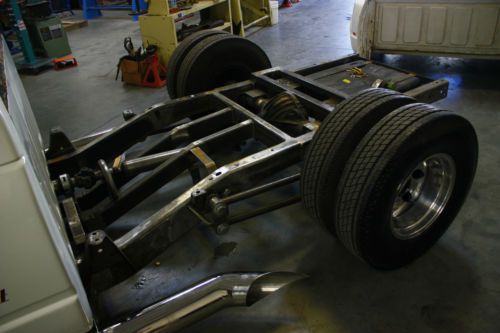

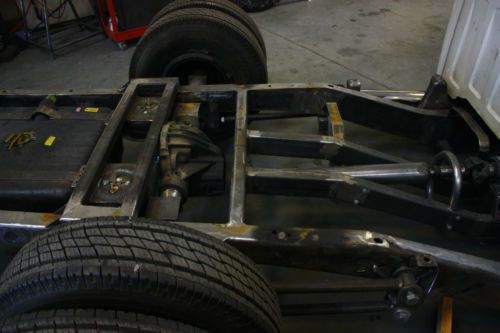

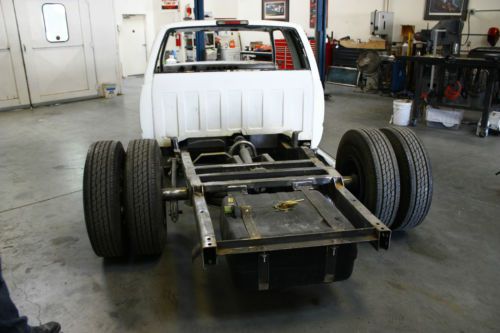

We had a custom chassis built by a renown high performance chassis builder. This chassis is designed to handle abuse the truck might see on a drag strip, pulling 50,000 lbs, or just beating it around town. It also incorporates semi truck firestone air bags all computer controlled so you can set and regulate your ride hight. It will actually self level if you put a load on it. Here are the specs.
Complete boxed frame with inner support structure for the ultimate in strength and rigidity.
Chassis all super high quality and was fig welded by an aerospace quality welder.
Brand new Gooseneck hitch as well as bumper pull receiver hitch


Suspension
Semi truck firestone air bags all computer controlled so you can set and regulate your ride hight. It will actually self level if you put a load on it
4 Link rear suspension built to withstand 2000 ftlb torque. 1" hime joints!
Custom made front control arms to accommodate air bag. Firestone air bags designed for semi use front and rear.
GM 14 bolt rear end with forged axles and a custom made Eaton locker with 4:11 gears.
Brand new red top steering box.
All New steering components such as ball joints, tire rods, pitman arm, drag link, etc.

Fuel System
Custom made dual poly fuel tanks 70 Gallons of fuel total.
All 1/2" fuel line
Custom billet aluminum mounting blocks to route, separate, and mount fuel lines, air lines, and brake lines along the chassis from firewall to rear end.
AirDogg Fuel pump and filter system rated to 1200 hp.
Aeromotive fuel pressure regulator.

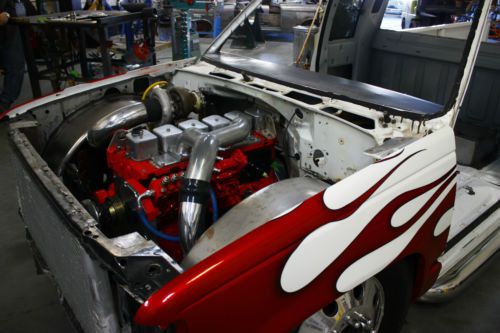

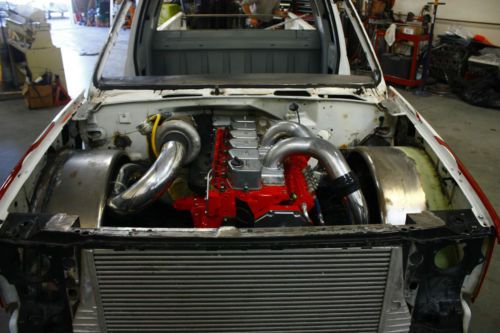

Engine
Made 980hp on the dyno with conservative tune. Designed to be very streetable and easy to drive.
5.9 Cummins out of a 97 Dodge truck

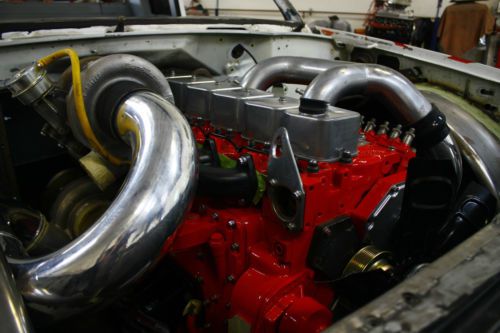

Dual Borge Warner Turbo Chargers capable of up to 100psi and 1200 hp
Complete short block was rebuilt using all Cummins parts including cylinders, pistons, after market billet crank shaft and rods, and balanced.
New cylinder head which has been professionally ported.
215 fuel pump that has been complete rebuilt and modified by the best pump tuner in the country. Will support up to 1200 hp.
Aftermarket Cam designed for the ultimate performance for drag/street racing, towing, and daily driving.
Custom intake manifold
Custom exhaust manifold

Air system
Cummins industrial engine driven air compressor.
20 gallon air tank with blow off valve.

Exhaust System

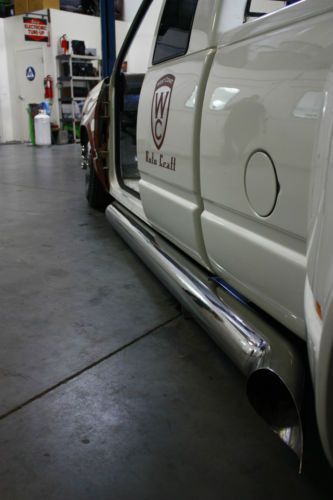

Dual hand made show quality 6" Polished stainless side pipes
Jacobs Exhaust brake

Cooling System

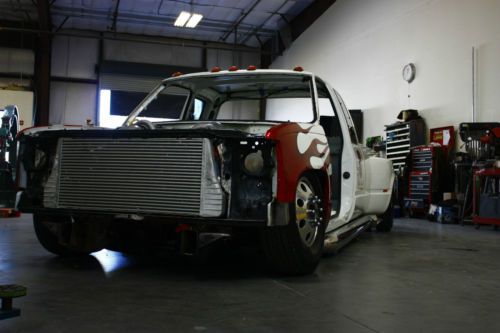

Brand new OEM Dodge aluminum radiator, A/C condensor, and Turbo Intercooler straight from dodge deal.
High flow cummins water pump
Cummins/dodge clutch fan.

Transmission
Max Performance 47RH Automatic with overdrive built by BD Performance.

Driveline
Custom made billet unit split with super heavy duty chassis mounted carrier bearing.

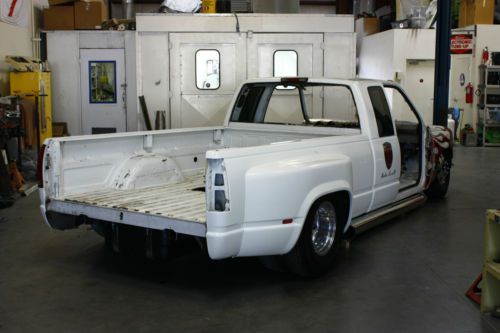

Body

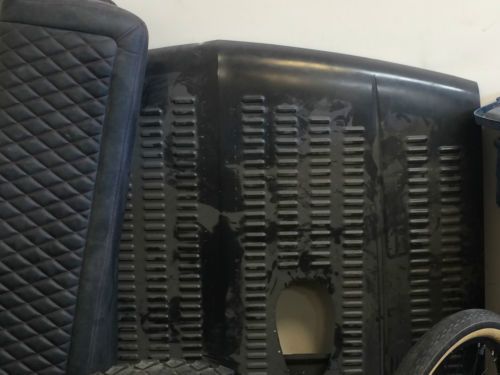

Brand new stock hood that has been "hot rod" louvered for looks and function (will ventilate engine compartment very well"
Custom 'hot rod" aluminum blister made and fit in hood to give extra clearance for turbo and look cool.
door handle, stake pockets, and tail lights have been shaved.
Custom roll pan with 50's Pontiac "bomber" tail lights. (3 on each side)

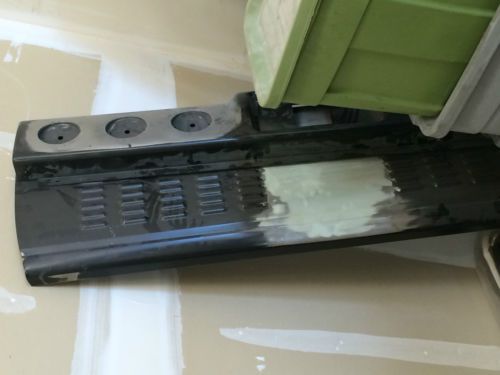

Custom tale gate skin which has been louvered for that "hot rod" look.
Body is very straight and void of any rust since it is a California truck.

Interior

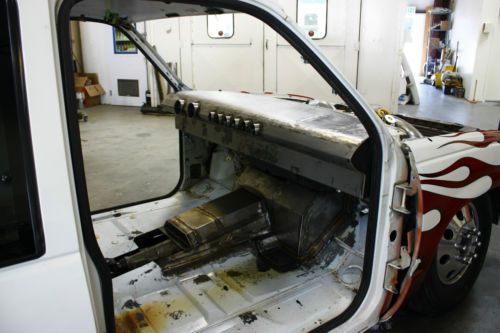

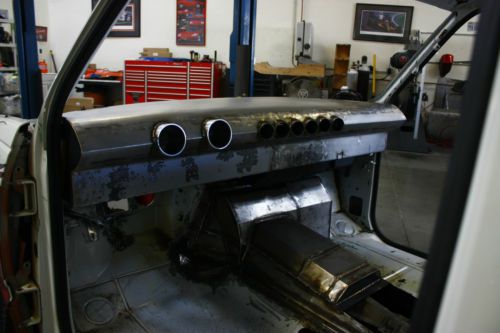

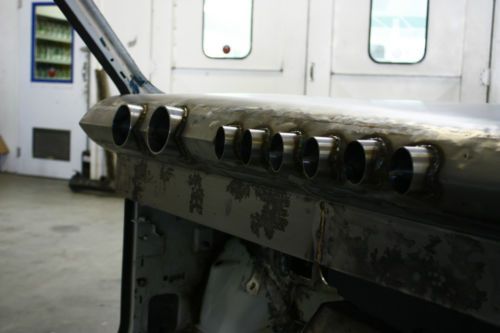

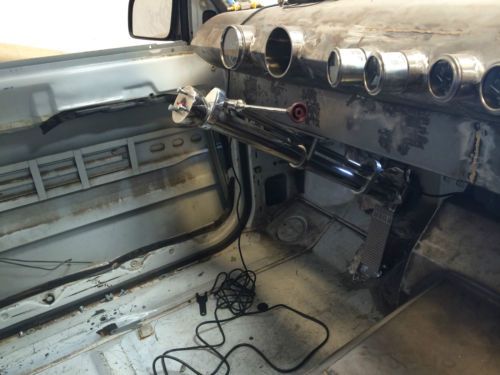

Hand made custom dash with gauge pods (looks like it should be in a fighter jet)
Hand made center console which houses stereo, cb radio, and glove compartment. All wrapped in black bomber jacket leather and top stitched with red french seams.
Hand Made custom shaped seats (sitting on original seat frame with rebuilt power motors) with black bomber jacket leather, red french seams, and red top stitched diamond shaped center sections.
Hand made custom rear seat with matching black bomber jacket leather, red french seams, and red top stitched diamond shaped center sections.
All Stuart Warner gauges including speedo, tach, oil pressure, water temp, amps, trans temp, EGT Pyrometer, and air pressure.
Lime Works Speed Shop billet aluminum 40 ford steering column, shifter, turn signal housing, and matching speedway steering wheel.

A/C system
Complete Vintage air magnum a/c, heater, defroster unit.
All lines
New condenser
New a/c compressor



I prefer wire transfer. Payment must be received within 36 hours. Please email me right after close of auction to make payment arraignments. Once payment is received I will overnight clean california title to you. I can help arraign shipping anywhere in the US.
